Wheel Alignment: Inspection: Camber

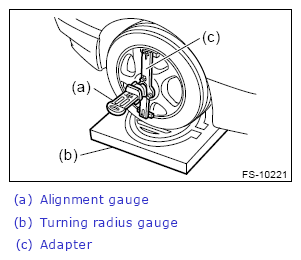

- Place the tires on the turning radius gauge.NOTE: Make sure that the ground contact surfaces of the front tires and rear tires are at the same level.
- Set the adapter into the center of wheel, and then set the wheel alignment gauge.
- Measure the camber angle in accordance with the operation instructions for wheel alignment gauge.
| Model | Front camber (difference between RH and LH 45" or less) | Rear camber (difference between RH and LH 45" or less) |
|---|---|---|
| Sedan model | -0°05'±0°45' | -1°30'±0°45' |
| OUTBACK model | 0°00'±0°45' | -1°00'±0°45' |
