Bushing Rear Front Arm

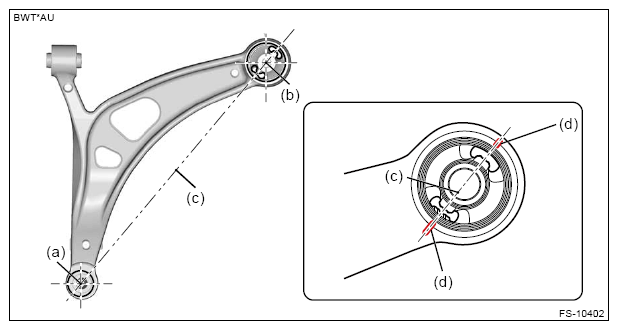

  1. Put alignment marks (d) on the arm COMPL front, based on an extended line (c) connecting the center of ball joint COMPL (a) and the center of busing rear front arm (b).
    G13620835Courtesy of SUBARU OF AMERICA, INC.

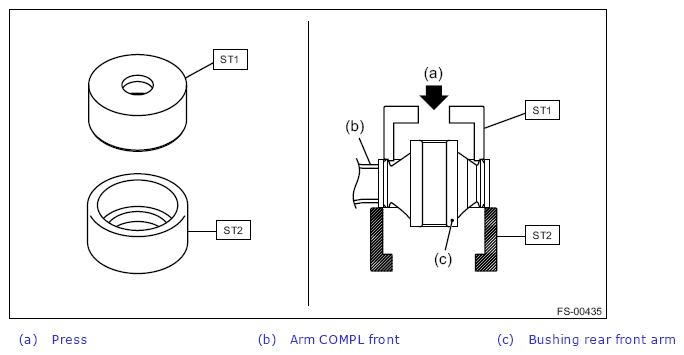

  2. Using the ST and a press, remove the busing rear front arm.

    Preparation tool:

    ST1: REMOVER (20299AG000)

    ST2: BASE (20299AG010)

G13620836Courtesy of SUBARU OF AMERICA, INC.
