Front Arm: Removal

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the crossmember support rear. Refer to FRONT SUSPENSION>Crossmember Support>REMOVAL .
  3. Remove the arm COMPL front.

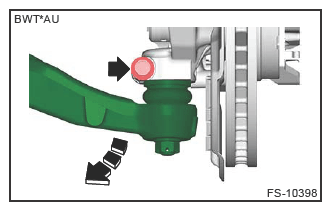

    1. Remove the bolt from the front axle housing.
    2. Lower the arm COMPL front, and remove the ball stud from the front axle housing.
      G13620827Courtesy of SUBARU OF AMERICA, INC.

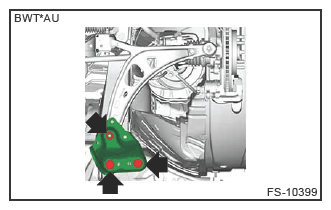

    3. Remove the front arm rear plate.
      G13620828Courtesy of SUBARU OF AMERICA, INC.

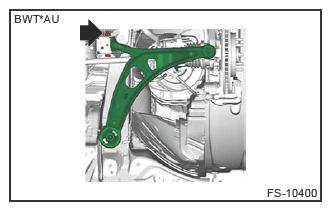

    4. Remove the arm COMPL front.
G13620829Courtesy of SUBARU OF AMERICA, INC.
