Outback Model

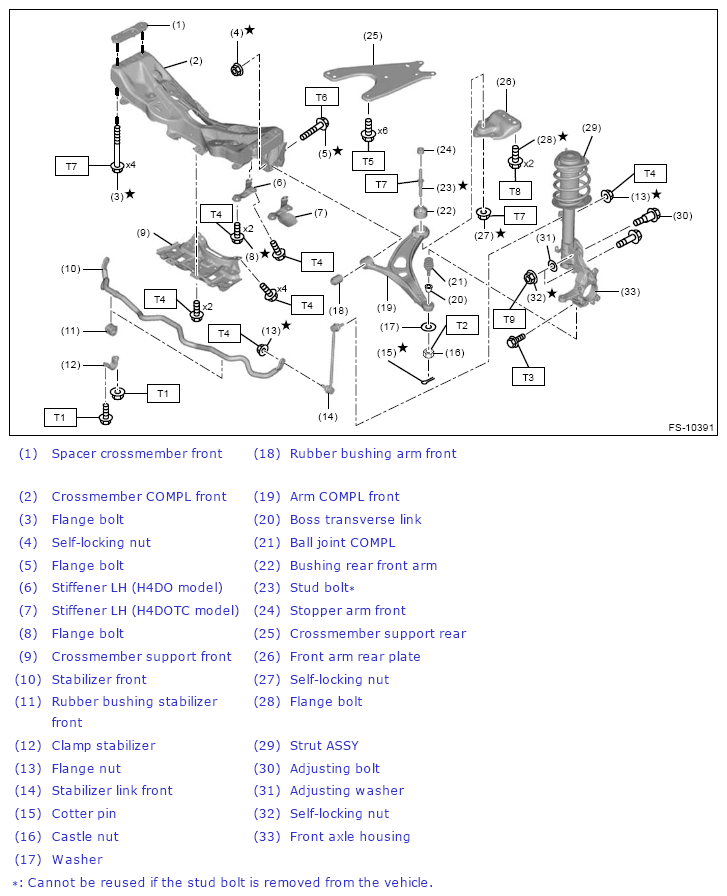

Fig 1: Front Suspension Components (With Torque Specification) (Outback Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 39 (4.0, 28.8)

T3: 50 (5.1, 36.9)

T4: 60 (6.1, 44.3)

T5: 70 (7.1, 51.6)

T6: 95 (9.7, 70.1)

T7: 110 (11.2, 81.1)

T8: 150 (15.3, 110.6)

T9: 155 (15.8, 114.3)
