Solenoid Unit
- Remove the select lever. Refer to CONTROL SYSTEMS>Select Lever>REMOVAL .

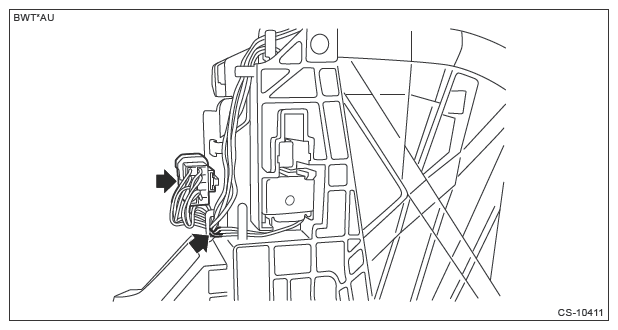

- Remove the harness and disconnect the connector.

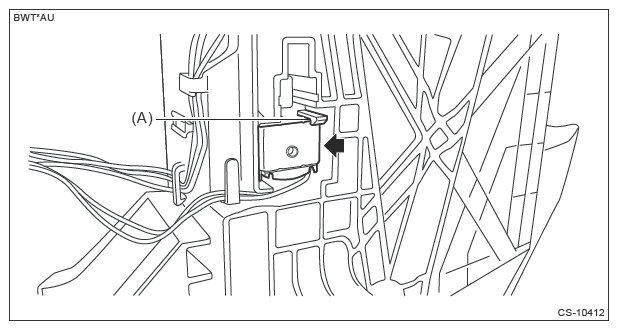

- Unlock the claws (A) and remove the solenoid unit.
- Pull out the terminal of the solenoid unit using KTC connector terminal tool (part number: ECC-1T).
NOTE:
A flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less can also be used.
| Terminal No. | Wiring color |
|---|---|
| 3 | Blue |
| 4 | Black |
