Cockpit Control Module

Terminal No. Contents Measuring condition Standard

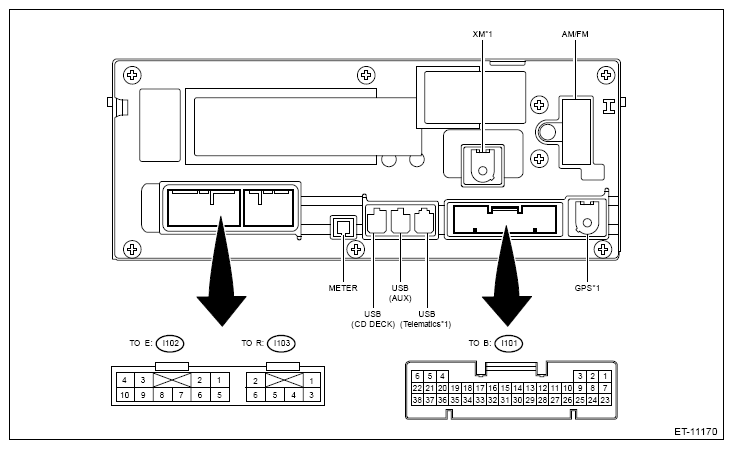

(i101) No. 1 - - -
(i101) No. 2 - - -
(i101) No. 3 - - -
(i101) No. 4 USB ground - -
(i101) No. 5 UART 2 - -
(i101) No. 6 USB power supply - -
(i101) No. 7 - - -
(i101) No. 8 Reverse signal - -
(i101) No. 9 Steering switch 1 (+) - -
(i101) No. 10 Steering switch 2 (+) - -
(i101) No. 11 - - -
(i101) No. 12 Steering switch GND - -
(i101) No. 13 Amplifier mute signal - -
(i101) No. 14 CAN communication 2 (H) - -
(i101) No. 15 CAN communication 2 (L) - -
(i101) No. 16 Microphone input shield ground - -
(i101) No. 17 Microphone input 1 (+) - -
(i101) No. 18 Microphone input 1 (-) - -
(i101) No. 19 Microphone detection - -
(i101) No. 20 Microphone input 2 (+) - -
(i101) No. 21 Microphone input 2 (-) - -
(i101) No. 22 Microphone power supply - -
(i101) No. 23 - - -
(i101) No. 24 - - -
(i101) No. 25 - - -
(i101) No. 26 Rear camera ground - -
(i101) No. 27 Rear camera power supply - -
(i101) No. 28 Rear camera input (+) - -
(i101) No. 29 Rear camera input (-) - -
(i101) No. 30 CAN communication 1 (H) - -
(i101) No. 31 CAN communication 1 (L) - -
(i101) No. 32 AUX ground - -
(i101) No. 33 RH AUX input - -
(i101) No. 34 LH AUX input - -
(i101) No. 35 Pin jack plugging detection - -
(i101) No. 36 - - -
(i101) No. 37 - - -
(i101) No. 38 DCM mute signal - -
(i102) No. 1 RH front door speaker (+) - -
(i102) No. 2 LH front door speaker (+) - -
(i102) No. 3 ←→ Chassis ground Ignition power supply IGN ON 11 - 15 V
(i102) No. 4←→ Chassis ground Backup power supply Always 11 - 15 V
(i102) No. 5 RH front door speaker (-) - -
(i102) No. 6 LH front door speaker (-) - -
(i102) No. 7 ←→ Chassis ground Ground Always 0 V
(i102) No. 8 Antenna power supply - -
(i102) No. 9 ←→ Chassis ground Battery power supply Always 11 - 15 V
(i102) No. 10 Illumination (+) - -
(i103) No. 1 RH rear door speaker (+) - -
(i103) No. 2 LH rear door speaker (+) or Interrupt audio (+) - -
(i103) No. 3 RH rear door speaker (-) - -
(i103) No. 4 Shield ground 2 - -
(i103) No. 5 Illumination (-) - -
(i103) No. 6 LH rear door speaker (-) or Interrupt audio (-) - -

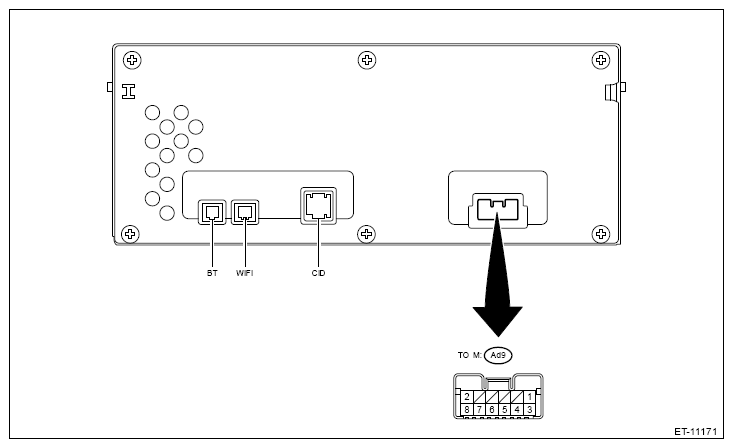

(Ad9) No. 1 Power supply for center information display - -
(Ad9) No. 2 Ground for center information display - -
(Ad9) No. 3 Ignition power supply for center information display - -
(Ad9) No. 4 Illumination for center information display (+) - -
(Ad9) No. 5 Illumination for center information display (-) - -
(Ad9) No. 6 - - -
(Ad9) No. 7 - - -
(Ad9) No. 8 UART 2 for center information display - -
