Fuel Level Sensor: Inspection
- Check that the fuel level sensor has no damage.
- Measure the fuel level sensor float position.NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

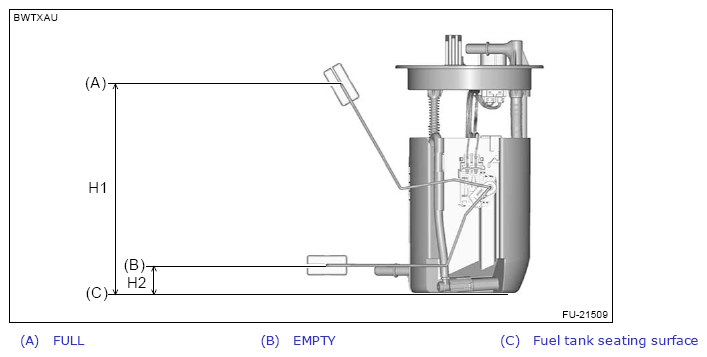

Float position Standard FULL - Fuel tank seating surface H1 190.7±3.5 mm (7.508±0.138 in) EMPTY - Fuel tank seating surface H2 24.6±3.5 mm (0.969±0.138 in) - Check the resistance between fuel level sensor terminals by the connector on top of the fuel pump.
Float position Terminal No. Standard FULL (A) 1 and 4 8.7±1.0 Ω EMPTY (B) 233.4±2.5 Ω
