Accelerator Pedal: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .

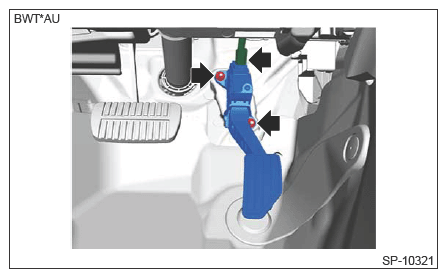

  2. Disconnect the connector and remove the accelerator pedal assembly.
    G13619408Courtesy of SUBARU OF AMERICA, INC.
