Intake Manifold: Disassembly

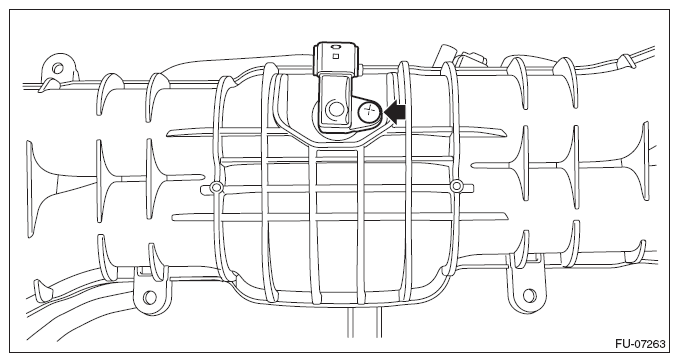

Remove the manifold absolute pressure & intake air temperature sensor from the intake manifold.

Courtesy of SUBARU OF AMERICA, INC.

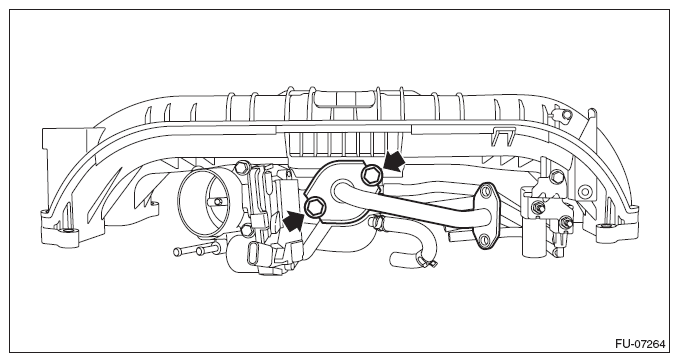

Remove the EGR pipe from intake manifold.

Courtesy of SUBARU OF AMERICA, INC.

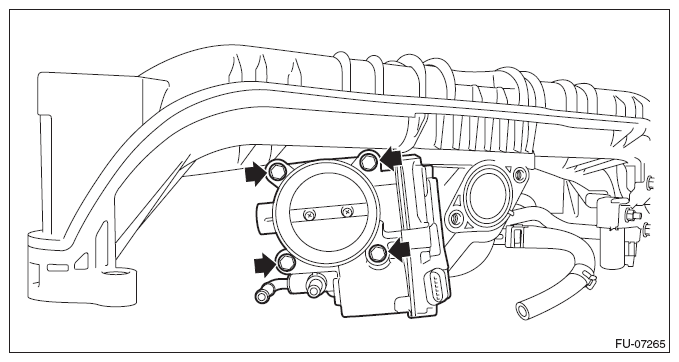

Remove the throttle body from the intake manifold.

Courtesy of SUBARU OF AMERICA, INC.

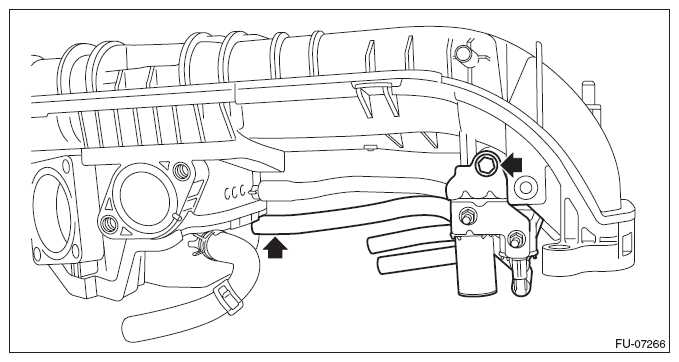

Disconnect the vacuum hose from the intake manifold, and remove the purge control solenoid valve.

Courtesy of SUBARU OF AMERICA, INC.

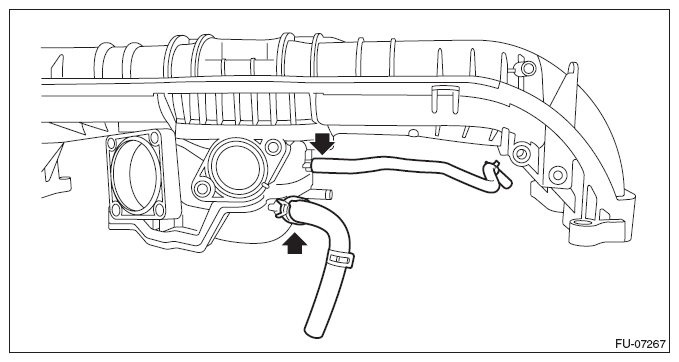

Disconnect the PCV hose and vacuum control hose from the intake manifold.

Courtesy of SUBARU OF AMERICA, INC.
