Steering Wheel: Disassembly

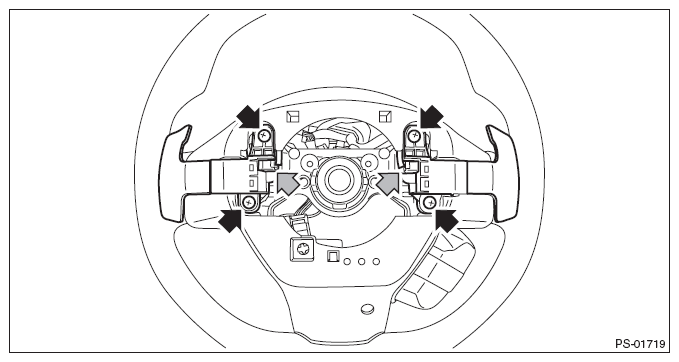

  1. Remove the screw, disconnect the connector and remove the paddle shift switch. (Model with paddle shift)
    G10270094Courtesy of SUBARU OF AMERICA, INC.

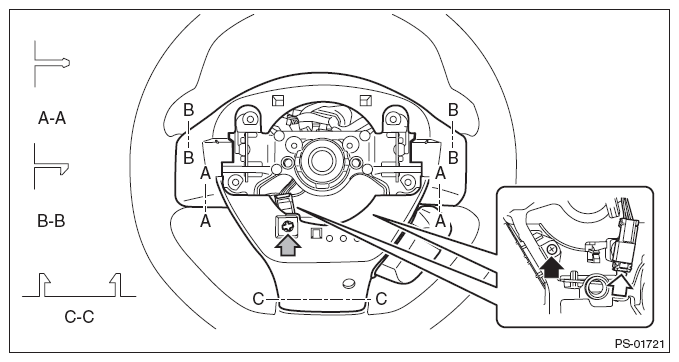

  2. Remove the cover - steering wheel LWR.
    1. Remove the connectors and screws.
    2. Release the claws and harness clips, detach the cover - steering wheel LWR.
      G10270095Courtesy of SUBARU OF AMERICA, INC.

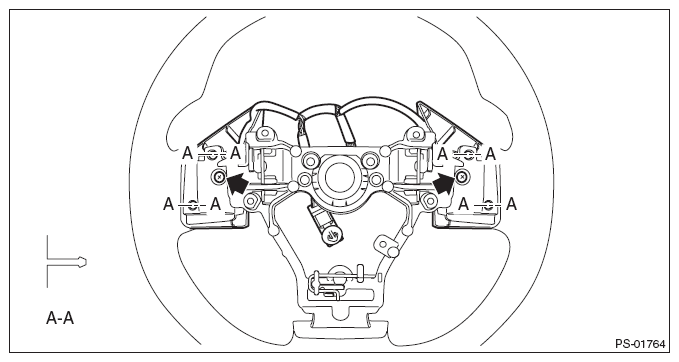

  3. Release the claws and remove the screws, then detach the satellite switch.
    G10270096Courtesy of SUBARU OF AMERICA, INC.

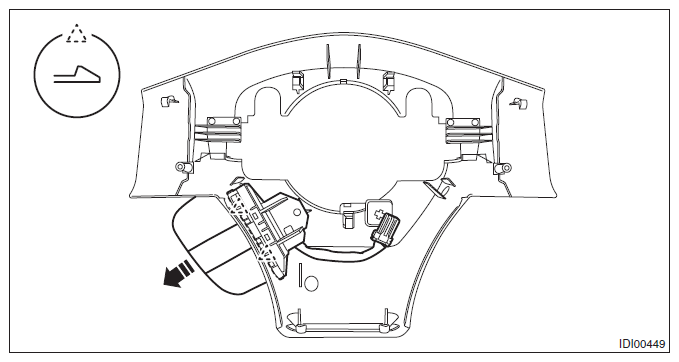

  4. Release the claws, and then remove the MID switch.
    G08319130Courtesy of SUBARU OF AMERICA, INC.
