Universal Joint: Removal

  1. Remove the universal joint assembly - steering.
    1. Place alignment marks on the universal joint assembly - steering.
      NOTE: Place alignment marks on the following positions.
      • Between the column assembly - steering and the universal joint assembly - steering
      • Between the steering gearbox assembly and the universal joint assembly - steering (only when the guide is not installed)

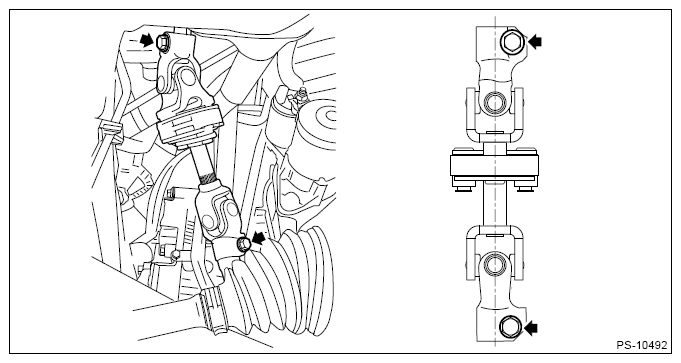

    2. Remove the bolt, and remove the universal joint assembly - steering. (Except for WRX STI model)
      CAUTION: Do not remove the guide.
      G13648341Courtesy of SUBARU OF AMERICA, INC.

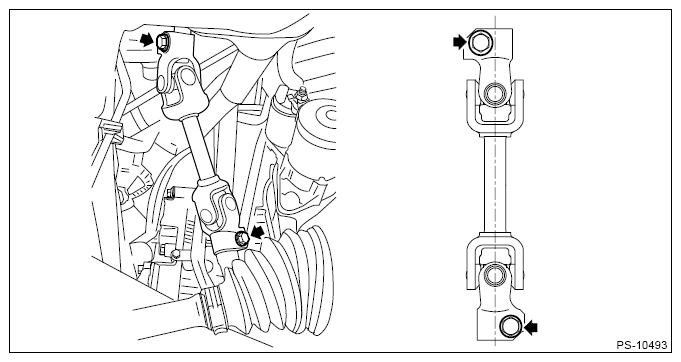

    3. Remove the bolt, and remove the universal joint assembly - steering. (WRX STI model)
      G13648342Courtesy of SUBARU OF AMERICA, INC.
  2. Set the steering column and the driver's seat to the neutral position.
    CAUTION: Always place the tilt lever to the lock position after the steering column is adjusted.

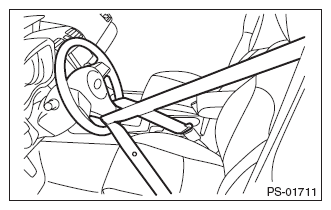

  3. Prevent the steering wheel from turning using the seat belt.
    G10270100Courtesy of SUBARU OF AMERICA, INC.
