Fuel Level Sensor: Inspection
- Check that the fuel level sensor has no damage.
- Measure the fuel level sensor float position.NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

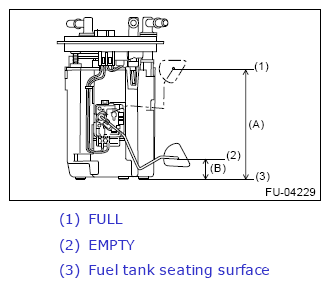

Float position Standard FULL to Fuel tank seating surface (A) 135±4 mm (5.315±0.157 in) EMPTY to Fuel tank seating surface (B) 23.7±4 mm (0.933±0.157 in) - Measure the resistance between fuel level sensor terminals.
Float position Terminal No. Standard FULL (A) 1 and 4 8.7±1.0 Ω EMPTY (B) 139.1±2.0 Ω
