Backup Battery

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the data communication module. Ref. to ENTERTAINMENT & MONITORING>Data Communication Module>REMOVAL>DATA COMMUNICATION MODULE .
  3. Remove the backup battery.

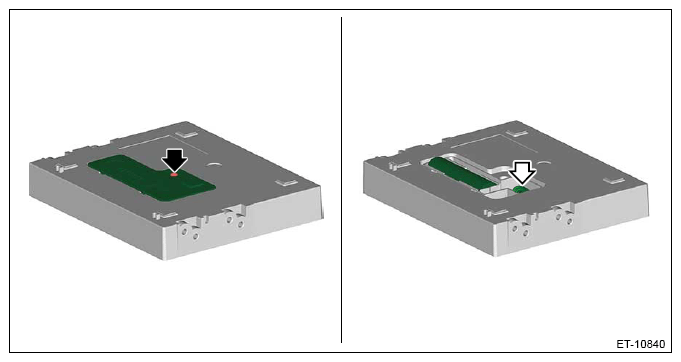

    1. Remove the cap screw, and then remove the battery cover.

      Preparation tool:

      TORX® T10

    2. Disconnect the connector and remove the backup battery.
G13865734Courtesy of SUBARU OF AMERICA, INC.
