Keyless Access Control Module: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover side sill front FR and the cover side sill front RR. Ref. to EXTERIOR/INTERIOR TRIM>Lower Inner Trim>REMOVAL
  3. Remove the pocket COMPL and the panel instrument passenger. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .
  4. Remove the keyless access control module.
    CAUTION: Be careful to keep water and other foreign materials away from the keyless access control module terminals  .

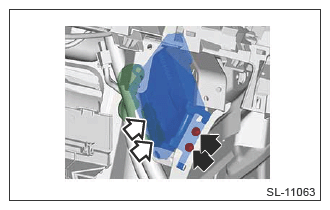

    1. Remove the bolts and pull out the keyless access control module.
    2. Disconnect the connector.
G13201481Courtesy of SUBARU OF AMERICA, INC.
