Variant Work: Notes

Perform when replacing the combination meter assembly.

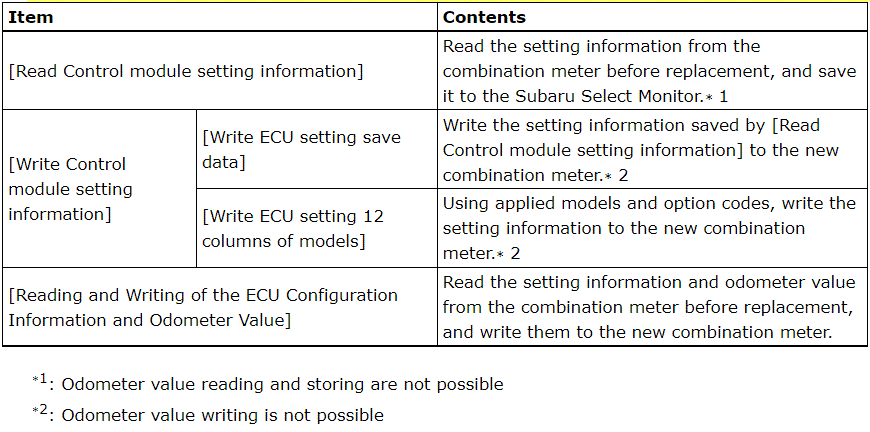

• When the combination meter before replacement can communicate with Subaru Select Monitor ([Read Control module setting information] is workable): Perform the operation procedure A.
• When the combination meter before replacement cannot communicate with Subaru Select Monitor ([Read Control module setting information] is not workable): Perform the operation procedure B.
  CAUTION: When incorrect information is written by [Reading and Writing of the ECU Configuration Information and Odometer Value], [Write ECU setting save data] and [Write ECU setting 12 columns of models], a new combination meter cannot be used because correct information is not displayed. Obtain another new combination meter and write information again.
