Electrical Specification

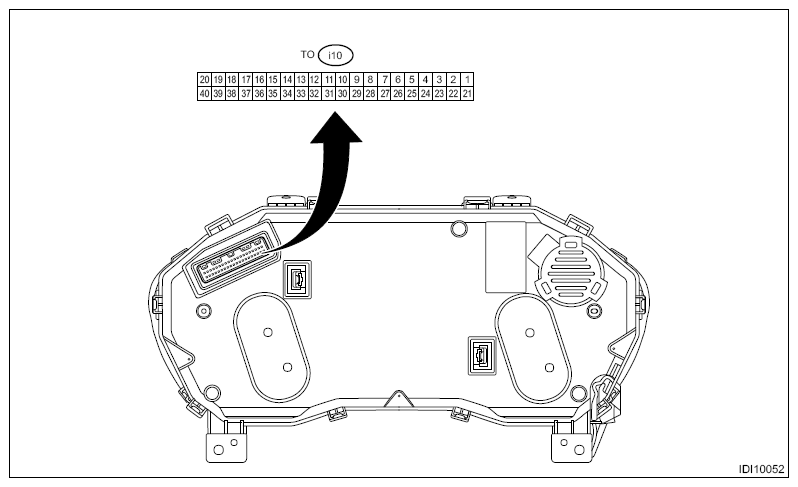

G11264441Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Contents Measuring condition Standard
(i10) No. 1 (+) ↔ Chassis ground (-) Battery power supply Always 10 - 16 V
(i10) No. 2 (+) ↔ Chassis ground (-) Ignition power supply (main) Ignition switch ON 10 - 16 V
(i10) No. 3 3RD SEATBELT (R) Seat belt not fastened → fastened 10 - 16 V → 0 V
(i10) No. 4 (+) ↔ Chassis ground (-) Seat belt (driver's seat) Seat belt not fastened → fastened 10 - 16 V → 0 V
(i10) No. 5 - - -
(i10) No. 6 CAN H (CAN communication line) - -
(i10) No. 7 CAN L (CAN communication line) - -
(i10) No. 8 REAR SEATBELT (R) Seat belt not fastened → fastened 10 - 16 V → 0 V
(i10) No. 9 REAR SEATBELT (C) Seat belt not fastened → fastened 10 - 16 V → 0 V
(i10) No. 10 REAR SEATBELT (L) Seat belt not fastened → fastened 10 - 16 V → 0 V
(i10) No. 11 MFD (UART communication line) - -
(i10) No. 12 WARNING BOX (UART communication line) - -
(i10) No. 13 - - -
(i10) No. 14 Washer fluid level sensor Washer fluid level sensor OFF → ON 10 - 16 V → 0 V
(i10) No. 15 - - -
(i10) No. 16 Rear differential oil temperature sensor (+) - -
(i10) No. 17 3RD SEATBELT (C) Seat belt not fastened → fastened 10 - 16 V → 0 V
(i10) No. 18 Oil pressure warning light Oil pressure sensor OFF → ON 10 - 16 V → 0 V
(i10) No. 19 Security indicator - -
(i10) No. 20 Rear differential oil temperature sensor (-) - -
(i10) No. 21 RH turn indicator - -
(i10) No. 22 LH turn indicator - -
(i10) No. 23 ↔ (i10) No. 24 Ambient sensor (+) Always Ref. to AIR CONDITIONERS>Ambient Sensor>INSPECTION .
(i10) No. 24 Ambient sensor (-) - -
(i10) No. 25 ↔ (i10) No. 26 Fuel level sensor (+) Always Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Level Sensor>INSPECTION . Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Sub Level Sensor>INSPECTION .
(i10) No. 26 Fuel level sensor (-) - -
(i10) No. 27 - - -
(i10) No. 28 3RD SEATBELT (L) Seat belt not fastened → fastened 10 - 16 V → 0 V
(i10) No. 29 Illumination control switch (GND) - -
(i10) No. 30 Illumination control switch (VR) - -
(i10) No. 31 Illumination control switch (+) - -
(i10) No. 32 Bright switch signal input - -
(i10) No. 33 ↔ (i10) No. 29 Bright switch signal output Switch ON Continuity exists
(i10) No. 34 Illume. (-) PWM - -
(i10) No. 35 - - -
(i10) No. 36 - - -
(i10) No. 37 ↔ Chassis ground X mode switch Switch ON Continuity exists
(i10) No. 38 ↔ Chassis ground TFT switch Switch ON Continuity exists
(i10) No. 39 - - -
(i10) No. 40 ↔ Chassis ground GND Always Less than 1 Ω
