Components With Torque Specifications

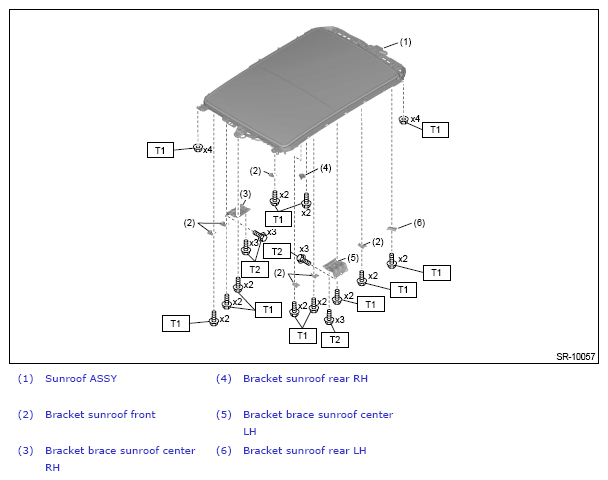

Fig 1: Exploded View Of Sunroof/T-Top/Convertible Top Components (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 12.7 (1.3, 9.4)

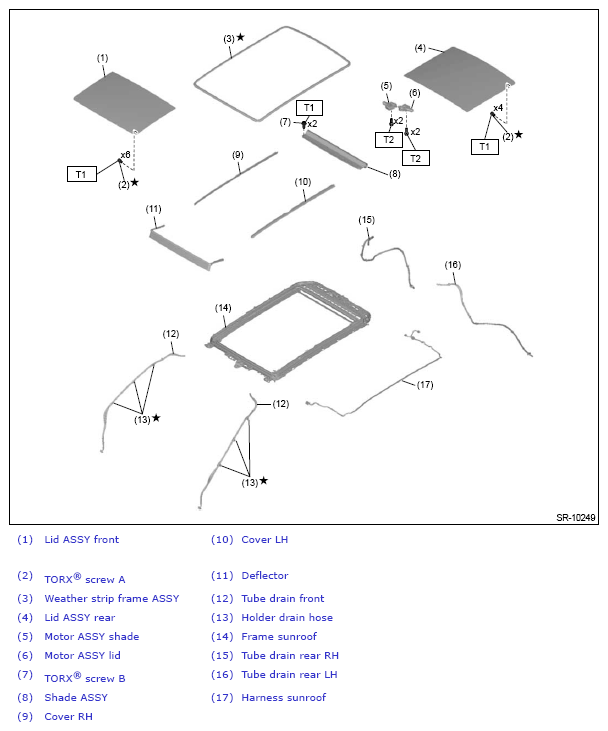

Fig 2: Exploded View Of Sunroof/T-Top/Convertible Top Components (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4 (0.4, 3.0)

T2: 5.4 (0.6, 4.0)
