Main Switch
CAUTION:
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM"
. Ref. to AIRBAG SYSTEM>General Description>CAUTION
.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the trim panel front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .

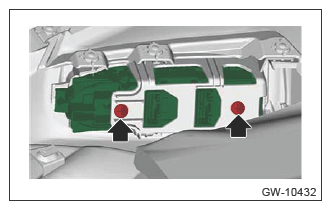

- Remove the screws and disconnect the connector, and then remove the switch assembly power window main.
