Power Window Control Switch: Removal: Sub-Switch

• SWITCH ASSEMBLY POWER WINDOW FRONT SUB

For removal of the switch assembly power window front sub on the passenger's seat, refer to the removal procedure of the switch assembly power window main. Ref. to GLASS/WINDOWS/MIRRORS>Power Window Control Switch>REMOVAL>MAIN SWITCH .

• SWITCH ASSEMBLY POWER WINDOW REAR SUB

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .

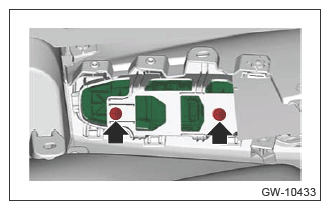

3. Remove the screws and disconnect the connector, and then remove the switch assembly power window rear sub.

Courtesy of SUBARU OF AMERICA, INC.
