VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)

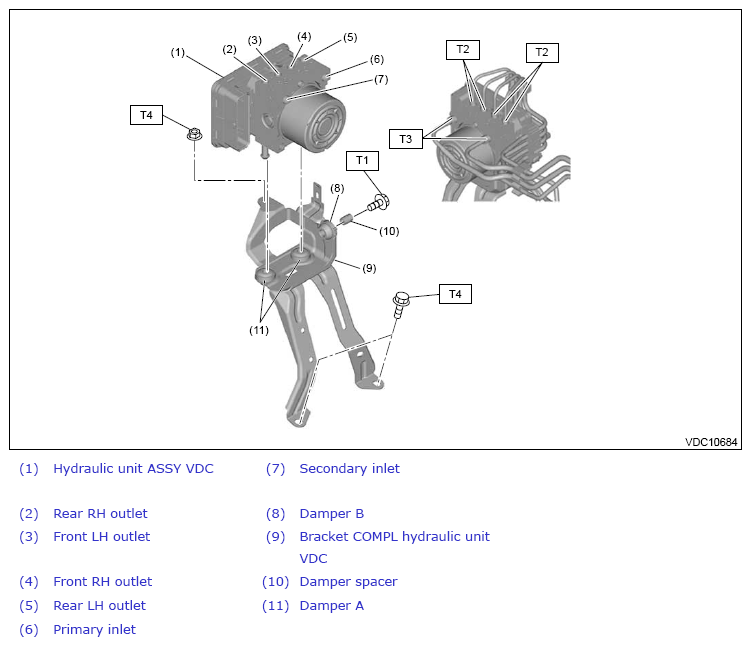

Fig 1: VDC Control Module And Hydraulic Control Unit Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 19 (1.9, 14.0)

T4: 33 (3.4, 24.3)
