Steering Angle Sensor: Removal

CAUTION:

If the steering wheel and the sensor assembly VDC steering are removed, perform "VSC (VDC) Centering Mode" of the VDC. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
Always use the steering wheel puller for removal to avoid deforming the steering wheel.
If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.

Position the front wheels straight ahead.
Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>Driver's Airbag Module>REMOVAL .
Remove the steering wheel. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Wheel>REMOVAL .
Remove the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Column>REMOVAL .
Remove the steering roll connector.
CAUTION: Make sure that the steering roll connector is not turned from the original position.
1. Disconnect the connector under the steering roll connector.

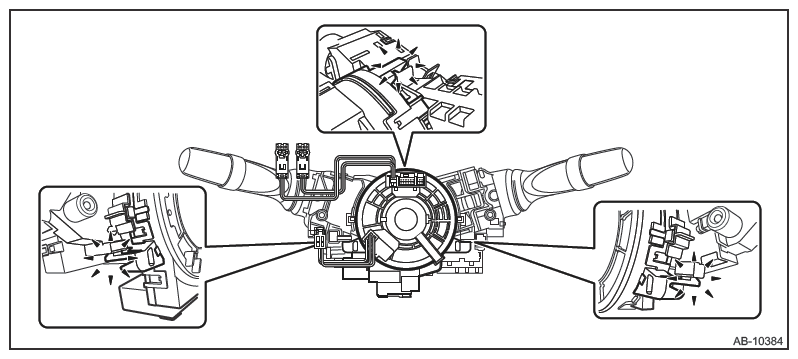

2. Release the claws and remove the steering roll connector.
Courtesy of SUBARU OF AMERICA, INC.
Remove the sensor assembly VDC steering.

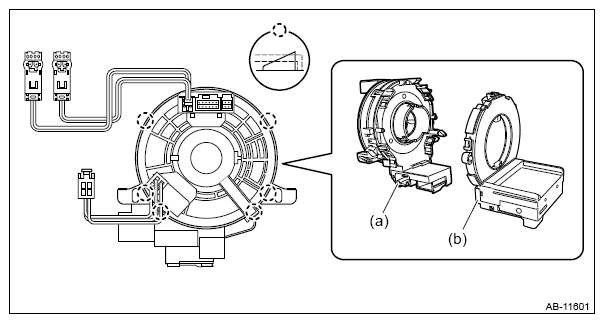

1. Release the claws and remove the sensor assembly VDC steering (b) from the steering roll connector (a).
