VDC OFF Switch: Removal

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .

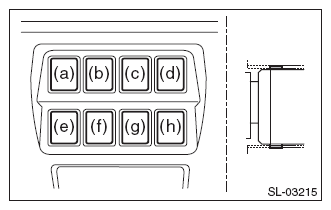

  3. Release the claws and remove the VDC OFF switch (e).
    G10277283Courtesy of SUBARU OF AMERICA, INC.
