Oil Pan

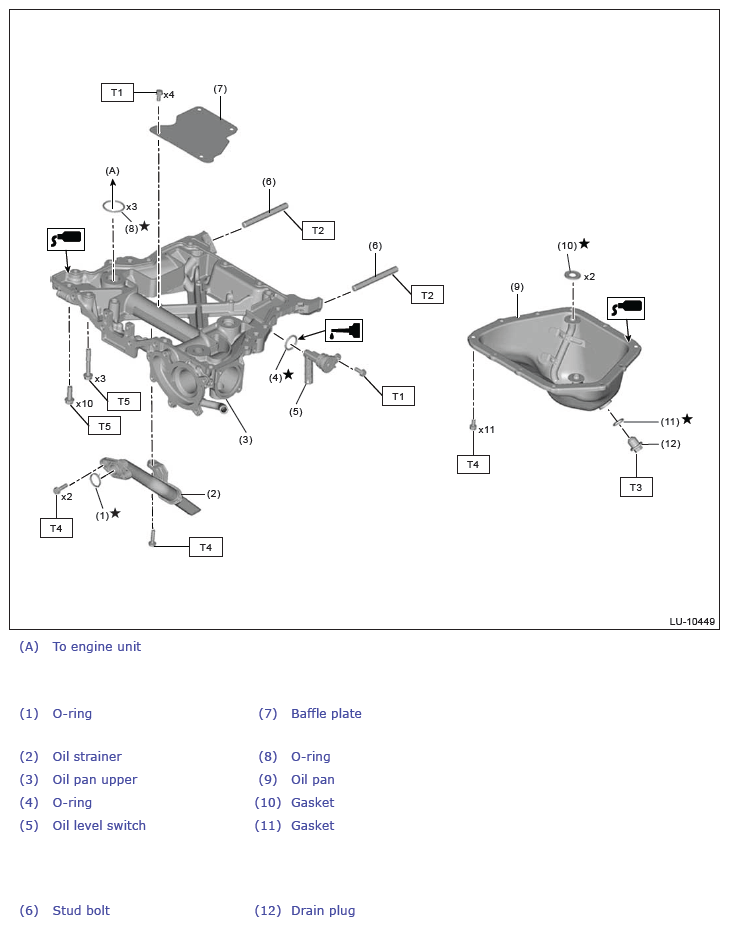

Fig 1: Exploded View Of Oil Pan Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10 (1.0, 7.4)

T3: 41.7 (4.3, 30.8)

T4:  Ref. to LUBRICATION (H4DOTC)>Oil Pan>INSTALLATION .

T5:  Ref. to LUBRICATION (H4DOTC)>Oil Pan>INSTALLATION .
