Oil Pipe

• Oil pipe (vacuum pump)

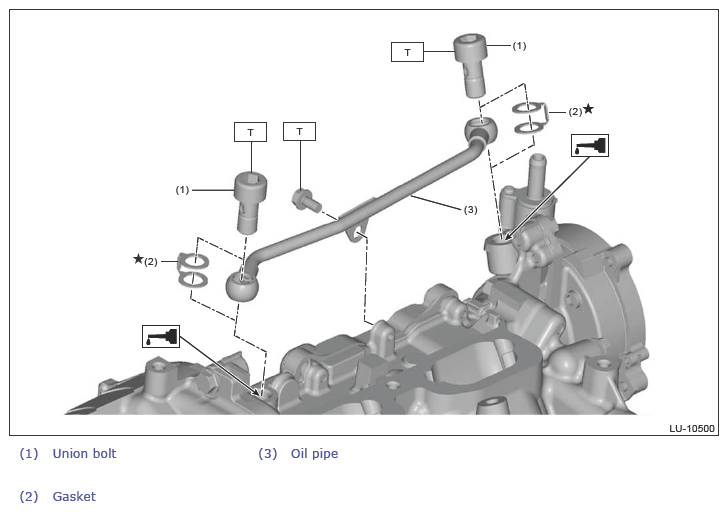

  Fig 1: Exploded View Of Oil Pipe (Vacuum Pump) Components

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T:  Ref. to LUBRICATION (H4DOTC)>Oil Pipe>INSTALLATION .

• Oil pipe (scavenge pump)

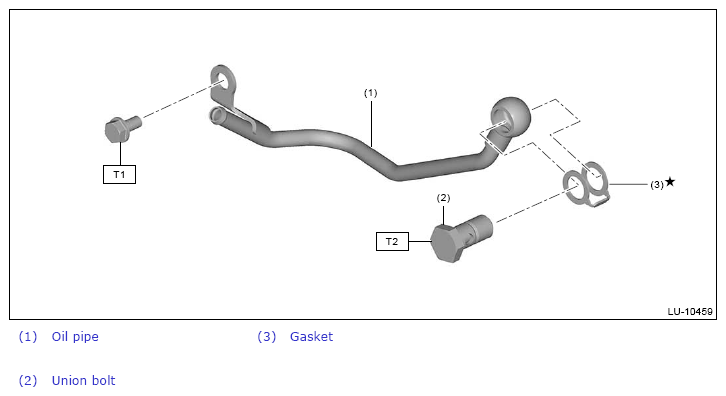

Fig 2: Exploded View Of Oil Pipe (Scavenge Pump) Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 31.5 (3.2, 23.2)
