Oil Filter: Removal

CAUTION:
  • Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
  • If the engine oil is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.

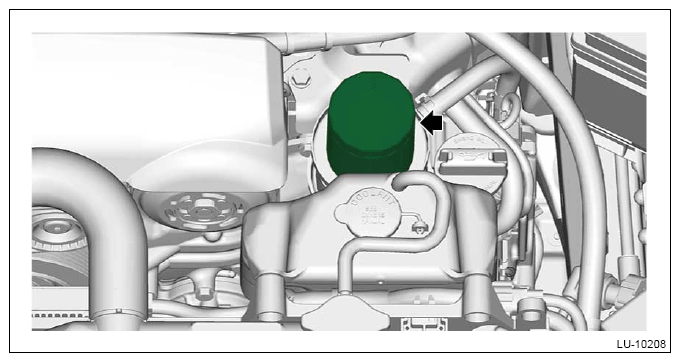

  1. Remove the oil filter using an oil filter wrench (65/67 mm 14 Flutes).
NOTE: If there is water or dust on the oil filter installation portion, clean it before removing the oil filter.
G13199144Courtesy of SUBARU OF AMERICA, INC.
