When The CROSSMEMBER COMPL Front Was Removed

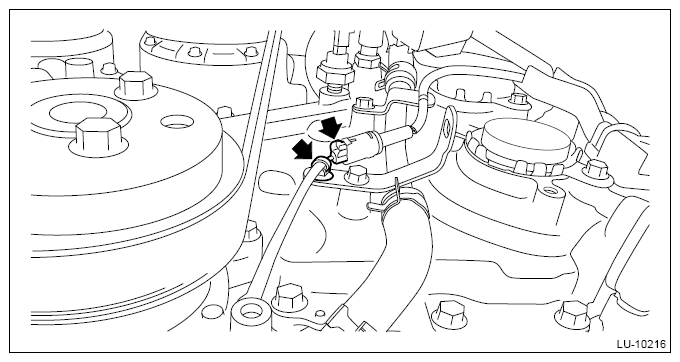

Use a new O-ring to install the oil level switch, and secure the harness with the clip.
NOTE: Apply engine oil to O-ring.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

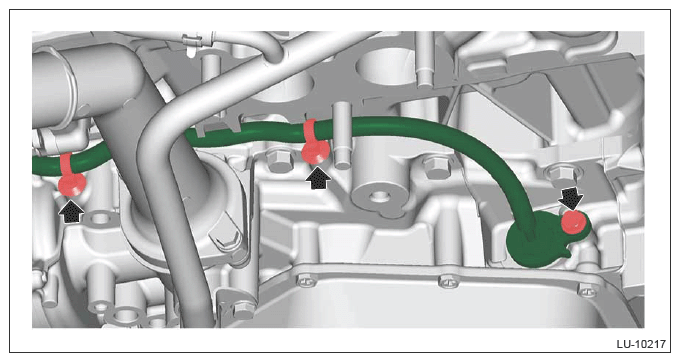

Secure the harness with clip, and connect the connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the crossmember COMPL front. Ref. to FRONT SUSPENSION>Crossmember>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
