When Not Removing The CROSSMEMBER COMPL Front

  1. Remove the striker assembly front hood. Ref. to EXTERIOR BODY PANELS>Front Hood>DISASSEMBLY .
  2. Fully open the hood COMPL front. Ref. to REPAIR CONTENTS>NOTE>STAY ASSEMBLY FRONT HOOD .
  3. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Drain engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  5. Drain the engine oil. Ref. to LUBRICATION (H4DOTC)>Engine Oil>REPLACEMENT .
  6. Remove the V-belt covers.

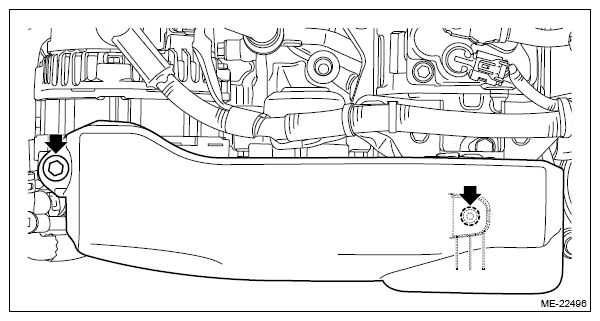

    G13862520Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .
  8. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  9. Remove the front exhaust pipe. Ref. to EXHAUST (H4DOTC)>Front Exhaust Pipe>REMOVAL .
  10. Remove the nuts which secure the engine mounting to the crossmember COMPL front.
    G13198682Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the electric power steering gearbox. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Electric Power Steering Gearbox>REMOVAL .
  12. Remove the front drive shaft LH. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>Front Drive Shaft>REMOVAL .
  13. Remove the pitching stopper. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Mounting System>REMOVAL>PITCHING STOPPER .
  14. Attach the ST1 and ST2.

    Preparation tool:

    ST1: BOLT (18363AA050)

    ST2: HANGER (18360AA040)

    Tightening torque:

    43 N.m (4.4 kgf-m, 31.7 ft-lb)

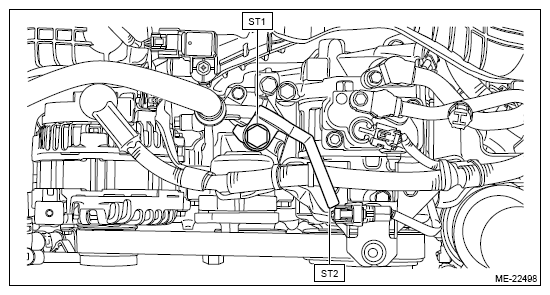

    G13862624Courtesy of SUBARU OF AMERICA, INC.
  15. Lift up the engine with a lifting device and wire ropes.
    CAUTION: When lifting up the engine, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.

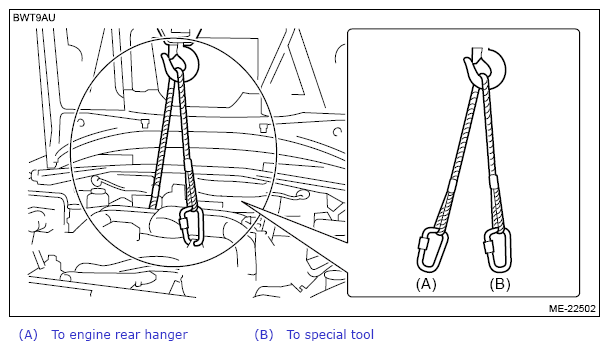

    G13863014Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the engine mounting LH.
    G11253671Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the clip holding the oil level switch harness and disconnect the connectors.
    G13199164Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the clip securing the harness, and remove the oil level switch.
G13199185Courtesy of SUBARU OF AMERICA, INC.
