Front Exhaust Pipe

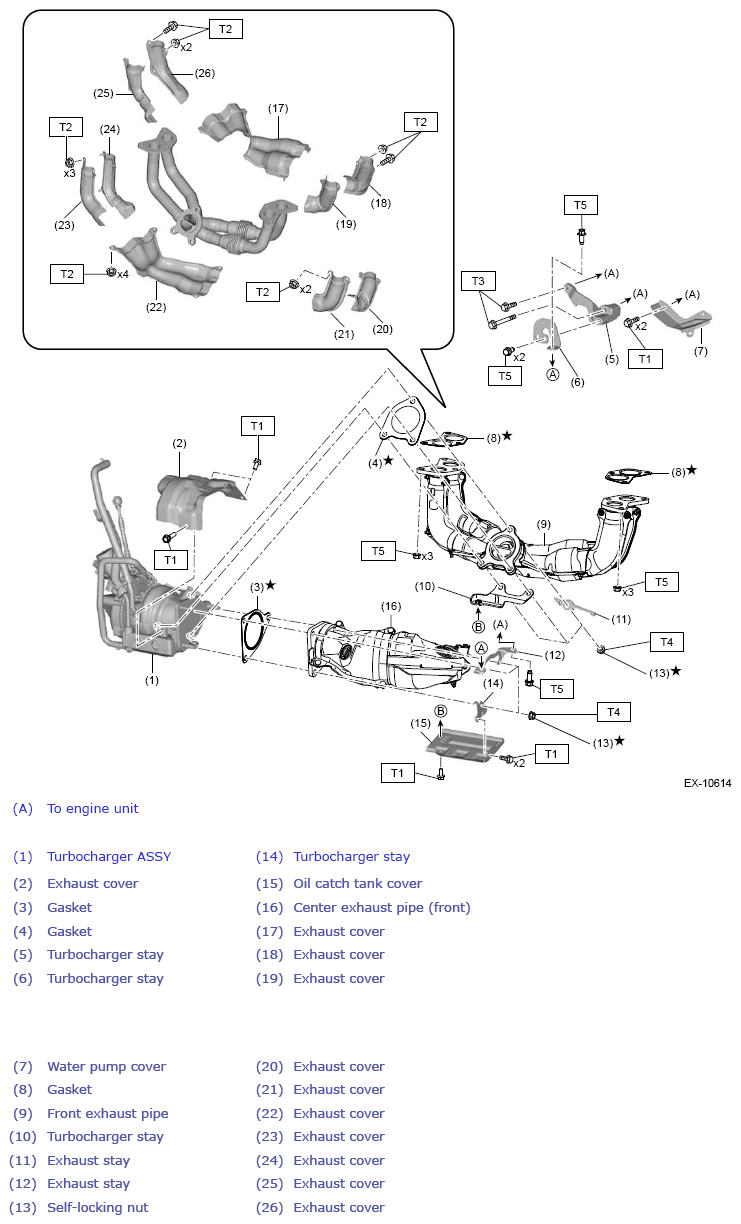

Fig 1: Exploded View Of Front Exhaust Pipe Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 7.5 (0.8, 5.5)

T3: 19 (1.9, 14.0)

T4: 42.5 (4.3, 31.3)

T5:  Ref. to EXHAUST (H4DOTC)>Front Exhaust Pipe>INSTALLATION .
