Fuel Injector RH
- Replace fuel injector seal, support disc and O-ring with new parts. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Injector>REPLACEMENT .

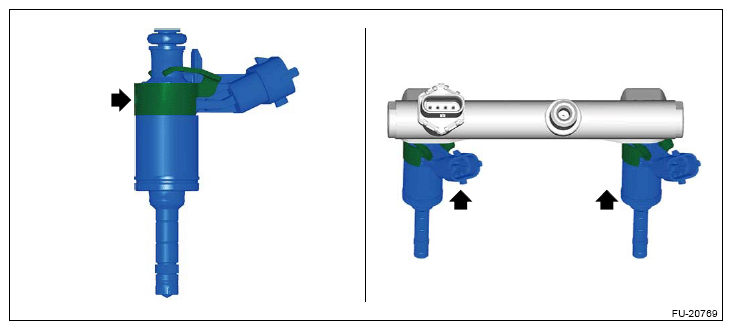

- Set the holder to the fuel injector, and install it straight to the fuel injector pipe RH.CAUTION:
- Always use a new holder.
- Degrease inside of the fuel injector insertion hole of the fuel injector pipe.
- Check the inside of the fuel injector insertion hole of the fuel injector pipe for foreign materials or damage.
- Be careful not to allow gasoline to contact with the fuel injector seal and the inside of the mounting hole.
- Apply liquid paraffin to the O-ring and install it.
- In order to prevent damaging the O-ring, do not install the fuel injector to the fuel injector pipe by tilting or twisting it.
- Make sure there is no gap between the fuel injector pipe and the fuel injector holder.

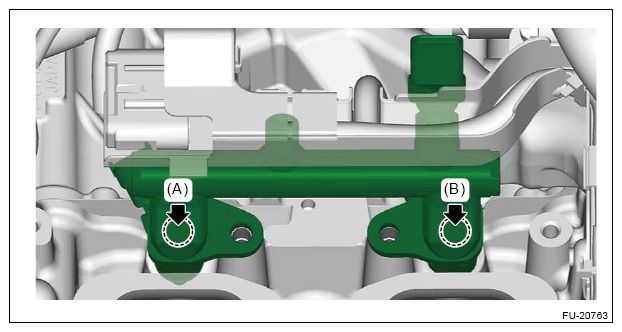

NOTE: Align the protrusion of the fuel injector with the fuel injector pipe RH hole. - Insert the fuel injector pipe RH and fuel injector as a single unit into the cylinder head, and align their positions. Then, evenly press the sections (A) and (B).CAUTION:
- When installing, apply liquid paraffin to the fuel injector seal.
- In order to prevent damaging the O-ring, do not install the fuel injector pipe and fuel injector by tilting them toward the cylinder head.
- Tighten the bolt on fuel pipe RH, and connect the connector (B) to the fuel injector #1.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Connect connector (A) to the fuel pressure sensor.
- Install the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Delivery Pipe>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
