Crankshaft Position Sensor, Camshaft Position Sensor, Knock Sensor And Oil Control Solenoid

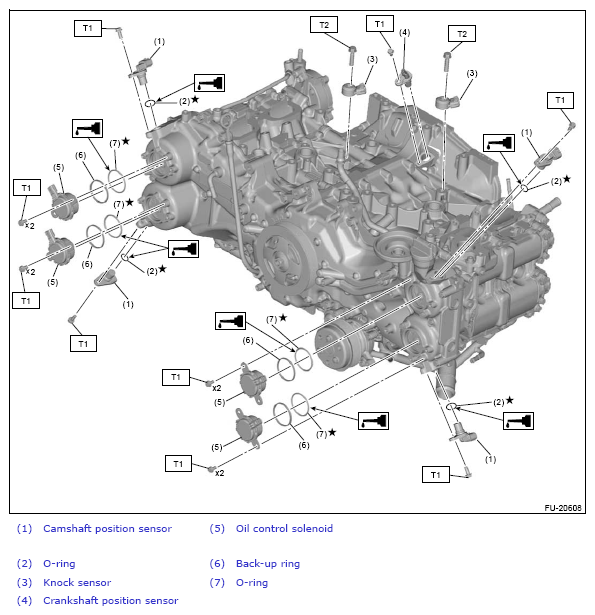

Fig 1: Exploded View Of Crankshaft Position Sensor, Camshaft Position Sensor, Knock Sensor And Oil Control Solenoid Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 25 (2.5, 18.4)
