Chain Cover: Disassembly

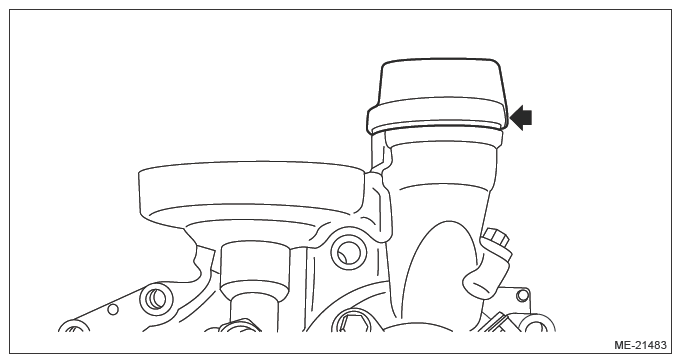

  1. Remove the oil filler cap.
    G13198759Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the PCV hose assembly No. 1. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>PCV Hose Assembly>REPLACEMENT>PCV HOSE ASSEMBLY NO. 1 .
  3. Remove the oil pressure switch. Ref. to LUBRICATION (H4DOTC)>Oil Pressure Switch>REMOVAL .
  4. Remove the engine oil temperature sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Engine Oil Temperature Sensor>REMOVAL .
  5. Remove the oil control solenoid. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Oil Control Solenoid>REMOVAL .
  6. Remove the camshaft position sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Camshaft Position Sensor>REMOVAL .
