Chain Cover

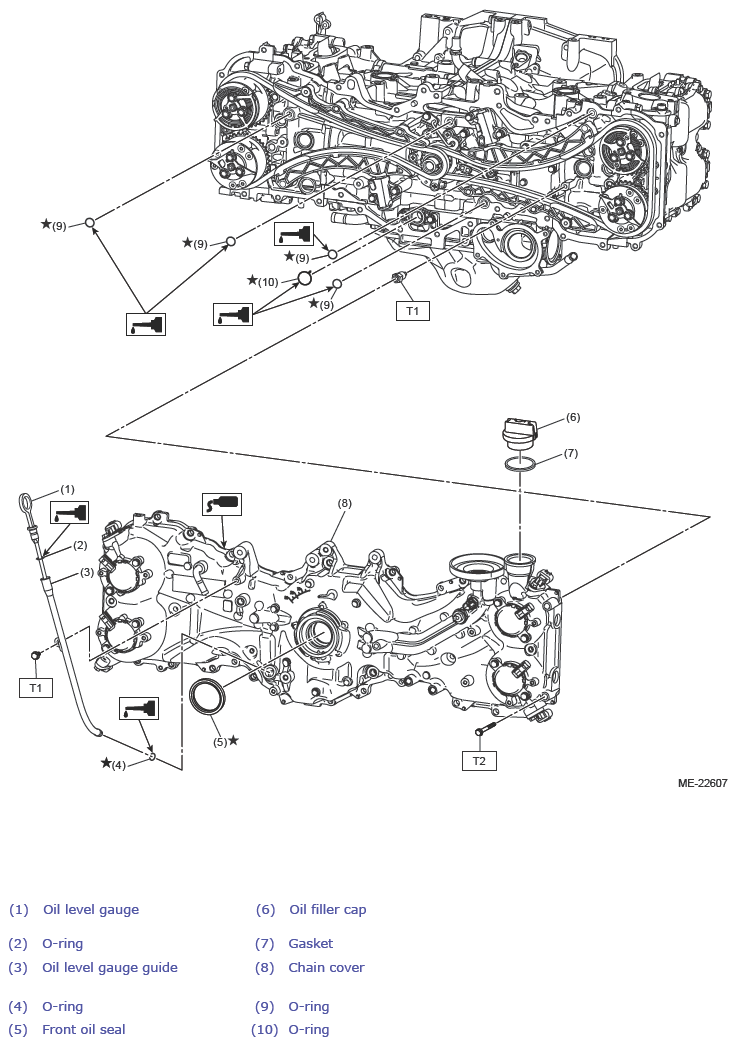

Fig 1: Chain Cover Components
G13862409Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2:  Ref. to MECHANICAL (H4DOTC)>Chain Cover>CHAIN COVER .
