Fuel Delivery and Evaporation Lines: Installation: Notes

  1. Install the fuel sub delivery tube.

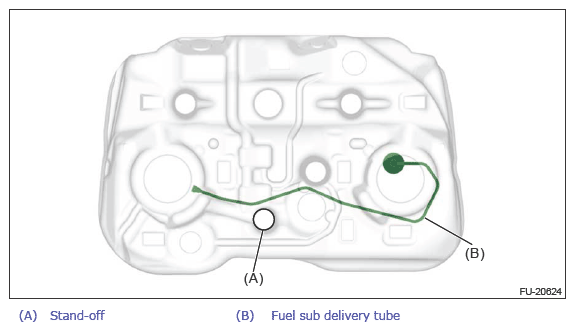

    1. Set the fuel sub delivery tube to the fuel tank.
      NOTE:
      • Route the fuel sub delivery tube in rear of the stand-off as shown in the figure.
      • Check the fuel sub delivery tube to make sure it's not twisted.
      G13866912Courtesy of SUBARU OF AMERICA, INC.
    2. Install the fuel sub level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Sub Level Sensor>INSTALLATION .
    3. Install the fuel pump. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Pump>INSTALLATION .

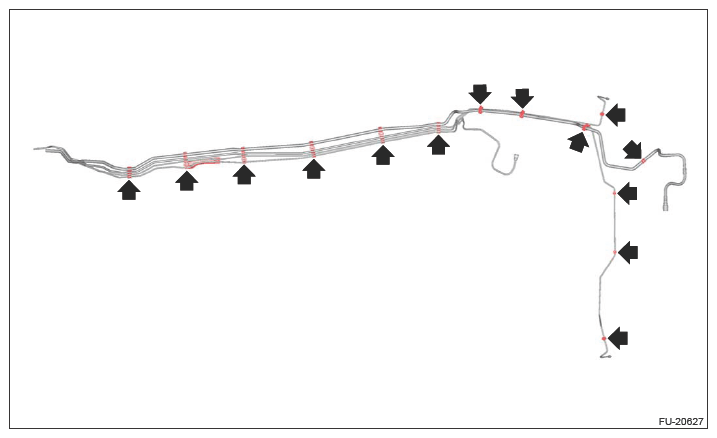

  2. Install the fuel pipe assembly to the pipe clamp and pipe protector.
    G13198435Courtesy of SUBARU OF AMERICA, INC.

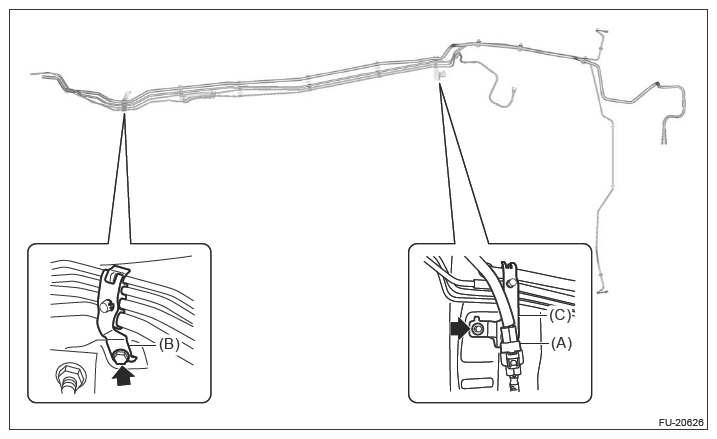

  3. Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket B (B) and fuel pipe bracket C (C).

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

  4. Install the connector to the fuel pipe bracket C (C) and connect the harness (A).
    G13198434Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the pipe assembly front ABS and pipe center brake rear. Ref. to BRAKE>Brake Pipe>INSTALLATION>FRONT BRAKE PIPE . Ref. to BRAKE>Brake Hose>INSTALLATION>REAR BRAKE HOSE .
  6. Install the rear pipe assembly front and rear pipe assembly rear. Ref. to AIR CONDITIONER>Hose and Pipe>INSTALLATION>PIPE>REAR A/C PIPE .
  7. Install the under cover rear RH. Ref. to EXTERIOR/INTERIOR TRIM>Floor Under Protector>INSTALLATION .

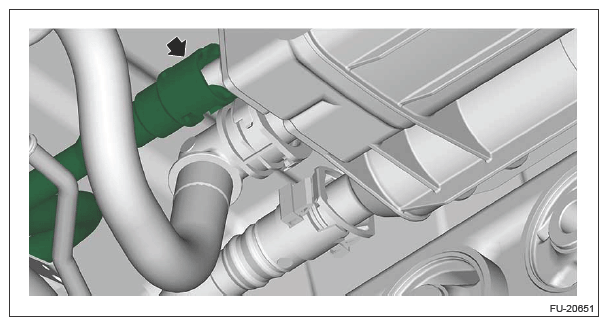

  8. Connect the fuel pipe assembly to canister. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE C) .
    G13198433Courtesy of SUBARU OF AMERICA, INC.
  9. Connect individual tubes and hoses to the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>General Description>COMPONENT>FUEL TANK .
    • For information about connecting fuel delivery tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE C) .
    • For information about connecting the circulate tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .
    • For information about connecting fuel filler hose, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>FUEL FILLER HOSE CONNECTION .
  10. Install the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>INSTALLATION. Refer to INSTALLATION

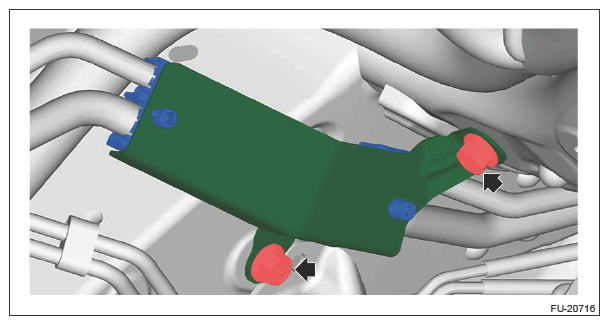

  11. Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket A.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G13198432Courtesy of SUBARU OF AMERICA, INC.
  12. Lower the vehicle.

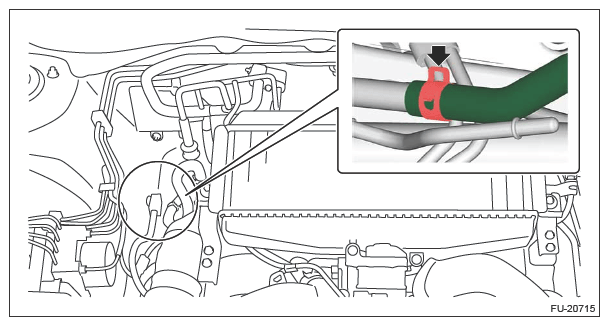

  13. Connect the evaporation hose to fuel pipe assembly.
    G13198431Courtesy of SUBARU OF AMERICA, INC.

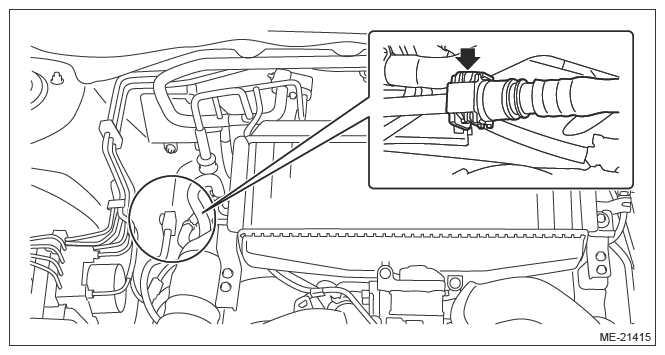

  14. Connect the quick connector on the fuel delivery tube to the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A) .
    G13198339Courtesy of SUBARU OF AMERICA, INC.

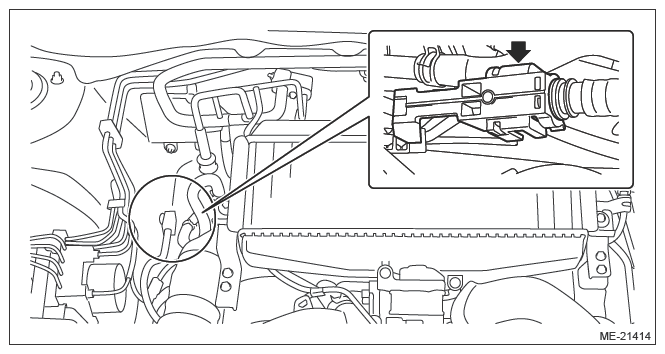

  15. Install the fuel delivery tube clamp to the fuel delivery tube.
    G13198338Courtesy of SUBARU OF AMERICA, INC.
