High-Pressure Fuel Delivery Pipe Assembly

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold Assembly>REMOVAL .
  3. Remove the fuel pipe insulator No. 1, fuel pipe insulator No. 2, fuel pipe insulator No. 3, fuel pipe insulator No. 4 and fuel pipe insulator No. 5. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>REMOVAL .

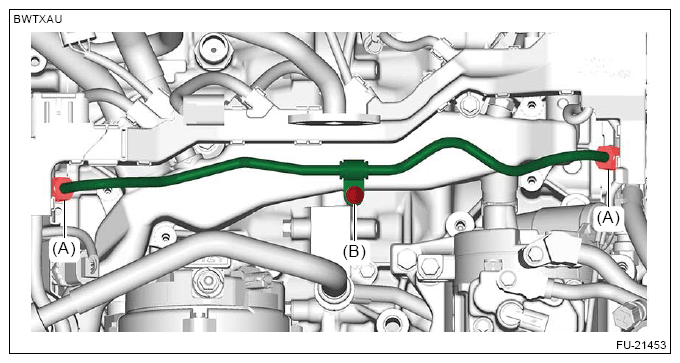

  4. Remove the flare nut (A) and bolt (B), and then remove the high-pressure fuel delivery pipe assembly.
    G13619634Courtesy of SUBARU OF AMERICA, INC.
