High-Pressure Fuel Pump

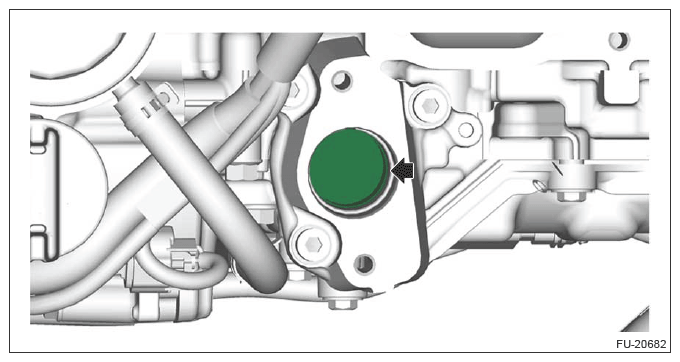

  1. Install the fuel pump lifter to the high-pressure fuel pump case.
    NOTE:
    • Apply engine oil to the side of the high-pressure fuel pump case and to the bottom surface of the fuel pump lifter.
    • After installing the fuel pump lifter, rotate the crankshaft in order to set the fuel pump lifter comes to the lowest position.
    G13198255Courtesy of SUBARU OF AMERICA, INC.
  2. Set a new O-ring, using TORX PLUS® 40IP, install the high-pressure fuel pump.

    Tightening torque:

    121 N.m (2.1 kgf-m, 15.5 ft-lb)

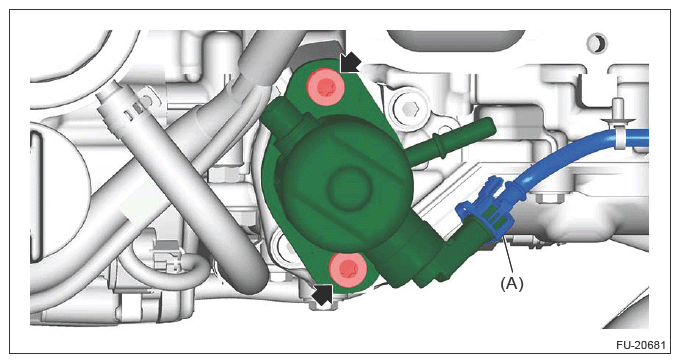

  3. Connect the connector (A) to the high-pressure fuel pump.
    G13198254Courtesy of SUBARU OF AMERICA, INC.
  4. Install the high-pressure fuel delivery pipe. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Delivery Pipe>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE .
  5. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
