Oil Control Solenoid: Removal: Exhaust

RH SIDE

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .

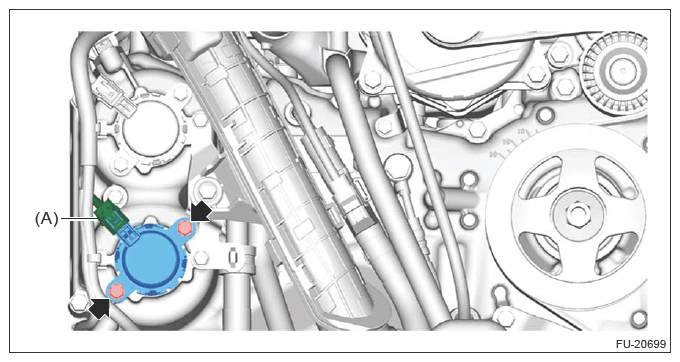

Disconnect the connector (A) and remove the oil control solenoid.

Courtesy of SUBARU OF AMERICA, INC.

LH SIDE

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the reservoir tank. Ref. to COOLING (H4DOTC)>Reservoir Tank>REMOVAL .

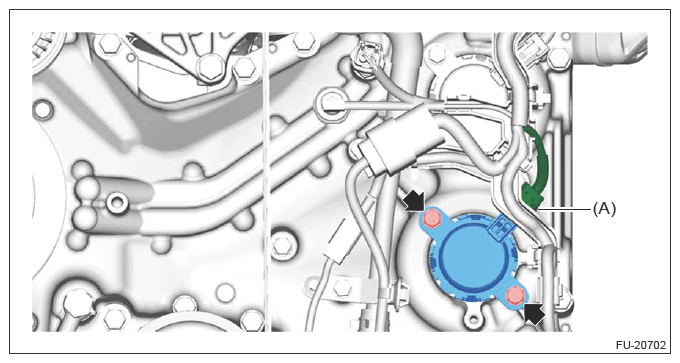

Disconnect the connector (A) and remove the oil control solenoid.

Courtesy of SUBARU OF AMERICA, INC.
