LH Side

  1. Remove the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>Battery>REMOVAL .

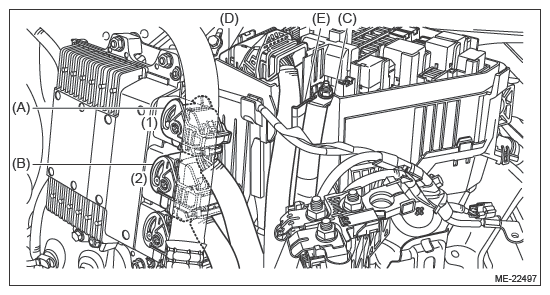

  2. Remove the connector (A) and connector (B) in numerical order shown in figure.
  3. Disconnect the terminal (C) and connector (D), and remove the engine wiring harness from the clip (E).
    G13862621Courtesy of SUBARU OF AMERICA, INC.

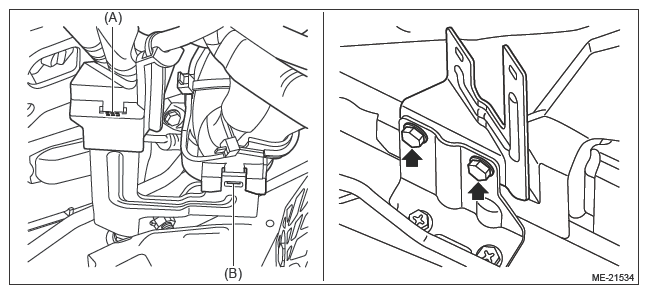

  4. Disengage the claw (A) which holds the battery cable assembly to the bracket and the claw (B) which holds the engine wiring harness, and move them aside so that they do not interfere with the work.
  5. Remove the bracket.
    G13198824Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G10318929Courtesy of SUBARU OF AMERICA, INC.

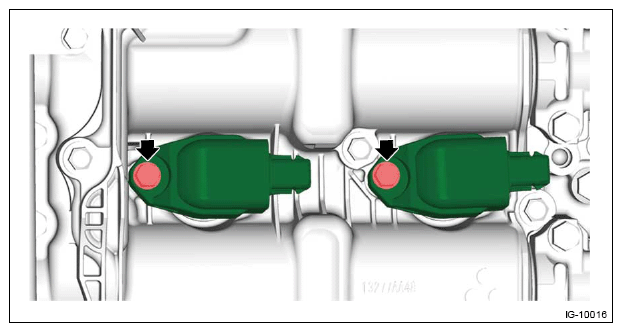

  7. Remove the ignition coil.
G13199205Courtesy of SUBARU OF AMERICA, INC.
