RH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Cleaner Case>REMOVAL .
  3. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G10318927Courtesy of SUBARU OF AMERICA, INC.

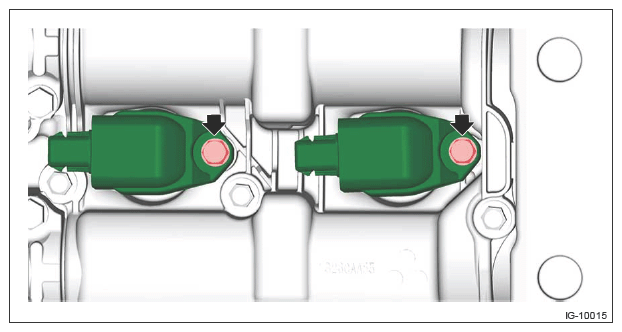

  4. Remove the ignition coil.
G13619412Courtesy of SUBARU OF AMERICA, INC.
