Stay Assembly Front Hood

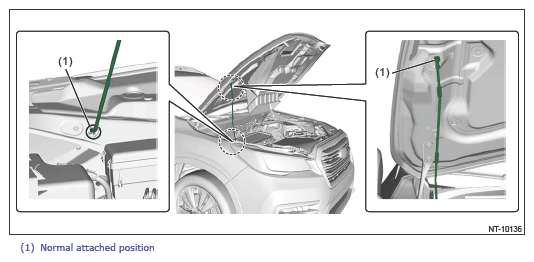

- Always attach the stay assembly front hood to the normal position when performing works such as inspections and general maintenance.CAUTION:
- During the inspection and general maintenance, always be sure to turn the ignition switch to OFF.
- At the inspection and general maintenance, do not detach the stay assembly front hood.

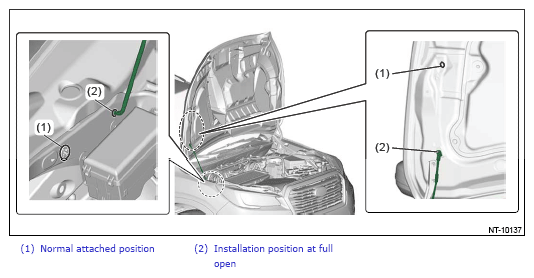

- When wider opening of the hood COMPL front is necessary, set the installation position on hood side and engine room side of the stay assembly front hood to full open position as shown in the figure.
