Front Camber

1. Adjust the camber angle to the following value.

   Camber (difference between RH and LH 35' or less)
   0°00'±0°30'

2. Loosen the two nuts, while holding the strut assembly bolts. (2 places at upper and lower)

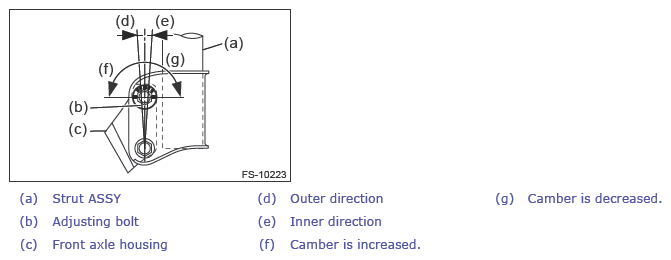

3. Turn the adjusting bolt so that the camber is set at specification.
   NOTE: Moving the adjusting bolt by one scale changes the camber by approximately 0°10'  .

   Courtesy of SUBARU OF AMERICA, INC.

   To increase camber.
   Rotate the left side counterclockwise.	Rotate the right side clockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

   To decrease camber.
   Rotate the left side clockwise.	Rotate the right side counterclockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

4. Tighten two new self-locking nuts.

Tightening torque:

155 N.m (15.8 kgf-m, 114.3 ft-lb)
