Wheel Alignment: Inspection: Camber

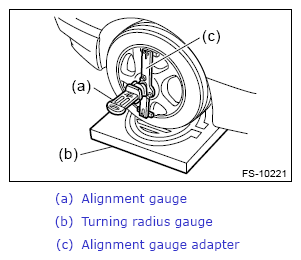

- Place the tires on the turning radius gauge.NOTE: Make sure that the ground contact surfaces of the front tires and rear tires are at the same level .
- Set the alignment gauge adapter into the center of wheel, and then set the alignment gauge.
- Measure the camber angle in accordance with the operation manual for alignment gauge.
| Front camber (difference between RH and LH 45' or less) | Rear camber (difference between RH and LH 45' or less) |
|---|---|
| 0°00'±0°45' | -0°30'±0°45' |
