Front Suspension System And Wheel Alignment: Crossmember: Installation
CAUTION:
- When raising the transmission jack, make sure that the tie-rod end and the drive shaft boot do not interfere. The drive shaft boot may be damaged.
- The crossmember COMPL front is heavy. Make sure that it is firmly supported so that it is level.
- For parts which are not reusable, always use new parts.
- Always tighten the bushing in the state where the vehicle is at curb weight and the wheels are in full contact with the ground.
- Install the clamp stabilizer with the arrow mark facing the front of the vehicle.
- Install the crossmember COMPL front.NOTE: Check the crossmember COMPL front for damage or cracks, and correct or replace if defective .
- Install the bolts which secure the crossmember COMPL front to the body.
Tightening torque:
Refer to "COMPONENT" of "General Description" for the tightening torque. Ref. to FRONT SUSPENSION>General Description>COMPONENT>FRONT SUSPENSION .
- While gradually lifting up the engine, set the ST between the engine mount LH and crossmember COMPL front, and then slowly lower the engine.
CAUTION:- When lifting up the engine, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.

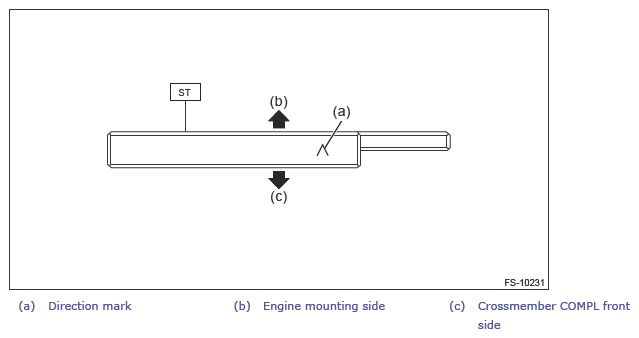

- To avoid damaging the ST, be sure to set the ST as shown in the figure.
- After lowering the engine, rock the engine to check that the ST does not come off.
Preparation tool:
ST: STAND ASSY (18632AA030)
- Install the bolts which secure the crossmember COMPL front to the body.
- Install the steering gearbox assembly and stiffener to the crossmember COMPL front.
Tightening torque:
Refer to "COMPONENT" of "General Description" for the tightening torque. Ref. to FRONT SUSPENSION>General Description>COMPONENT>FRONT SUSPENSION .
- Install the steering gearbox assembly harness.
- Install the universal joint LWR. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Universal Joint>INSTALLATION .
- Install the arm COMPL front. Ref. to FRONT SUSPENSION>Front Arm>INSTALLATION .
- Install the tie-rod end.NOTE: When tightening the castle nut, tighten the castle nut to the specified torque first, then tighten it further but within 60° until the hole in the ball stud is aligned with a slot in castle nut .
Tightening torque:
27 N.m (2.7 kgf-m, 19.9 ft-lb)
- Insert a new cotter pin and secure the castle nut.
- Install the stabilizer front. Ref. to FRONT SUSPENSION>Stabilizer>INSTALLATION>STABILIZER .
- Install the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>Center Exhaust Pipe>INSTALLATION>CENTER EXHAUST PIPE (REAR) .
- Install the crossmember support front. Ref. to FRONT SUSPENSION>Crossmember Support>INSTALLATION .
- Install the sub frame COMPL.
Tightening torque:
Refer to "COMPONENT" of "General Description" for the tightening torque. Ref. to FRONT SUSPENSION>General Description>COMPONENT>FRONT SUSPENSION .
- Install the under cover front.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the front wheels and lower the vehicle.
Tightening torque:
120 N.m (12.2 kgf-m, 88.5 ft-lb)
- Install the power steering harness connector and harness clamp in the engine compartment.
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Inspect the wheel alignment and adjust if necessary.
- Inspection: Ref. to FRONT SUSPENSION>Wheel Alignment>INSPECTION .
- Adjustment: Ref. to FRONT SUSPENSION>Wheel Alignment>ADJUSTMENT .
- Perform the following adjustments using Subaru Select Monitor.
- Lane keep assist learning value clear: Ref. to EyeSight (DIAGNOSTICS)>Clear Active Lane Keep System Learning Value>OPERATION .
- VDC sensor midpoint setting mode: Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)>ADJUSTMENT .
