Arm Front Rear Bushing Assembly

1. Before installation, inspect the following items and replace any faulty part with a new one.
   • Check the arm COMPL front for damage or cracks, and replace if defective.
   • Visually check the bushing for abnormal cracks, fatigue or damage.
   • Visually check the boot on the ball joint COMPL for damage.
2. Install the arm front rear bushing assembly to the arm COMPL front.

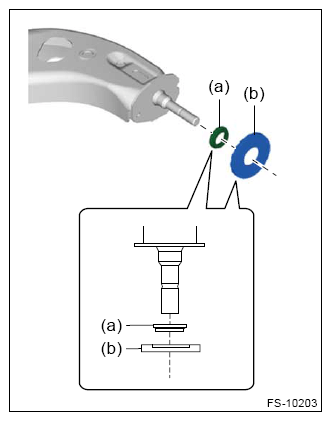

1. Install the spacer arm (a) and the stopper rubber arm (b).

   Courtesy of SUBARU OF AMERICA, INC.

2. Install the arm front rear bushing assembly so that protrusion (a) faces the rear side of the vehicle.

   Courtesy of SUBARU OF AMERICA, INC.

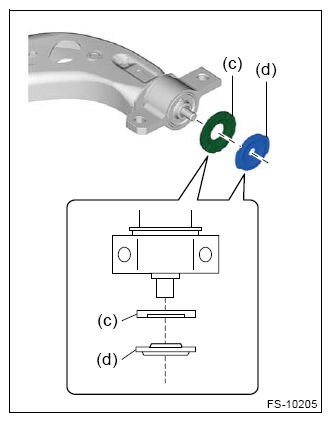

3. Install the stopper rubber arm (c) and the plate arm front (d).

   Courtesy of SUBARU OF AMERICA, INC.

4. Using new self-locking nuts, install the arm front rear bushing assembly to the arm COMPL front by matching the alignment marks that have been marked when removing.

Tightening torque:

140 N.m (14.3 kgf-m, 103.3 ft-lb)

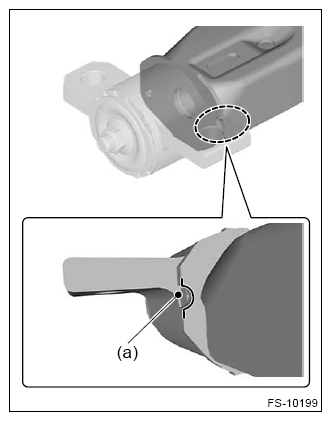

• Arm COMPL front replacement: align the cutout portion of the arm COMPL front with the alignment mark (a) on the arm front rear bushing assembly.

  Courtesy of SUBARU OF AMERICA, INC.

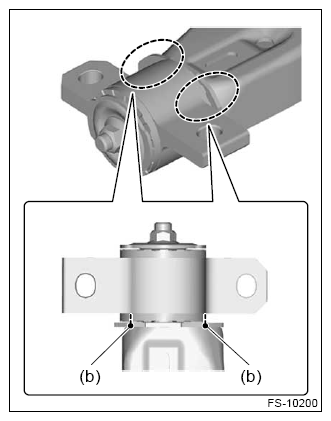

• Arm front rear bushing assembly replacement: align the imaginary line extending from the rib portion of the arm front rear bushing assembly with the alignment mark (b) on the arm COMPL front.

Courtesy of SUBARU OF AMERICA, INC.
