Front Arm: Removal

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  3. Remove the sub frame COMPL. Ref. to FRONT SUSPENSION>Sub Frame>REMOVAL .
  4. Remove the arm COMPL front.

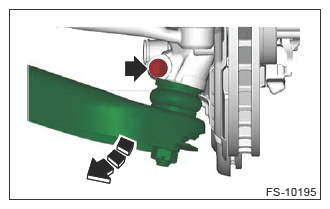

    1. Remove the bolt from the front axle housing.
    2. Lower the arm COMPL front, and remove the ball stud from the front axle housing.
      G13199323Courtesy of SUBARU OF AMERICA, INC.

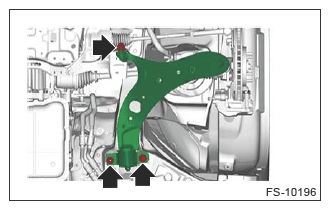

    3. Remove the arm COMPL front.
    G13199324Courtesy of SUBARU OF AMERICA, INC.
