Front Strut: Assembly

CAUTION:

When installing the coil spring compressor to the coil spring, follow the operation manual accompanied with the coil spring compressor during operation.
Do not use an impact wrench to compress the coil spring.

Before assembly, check each part. Ref. to FRONT SUSPENSION>Front Strut>INSPECTION .
Using a coil spring compressor, compress the coil spring.

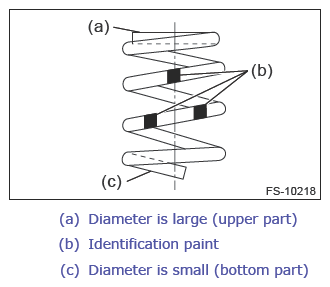

NOTE: Make sure that the vertical install direction of the coil spring is as shown in the figure .

Courtesy of SUBARU OF AMERICA, INC.
Install the rubber seat LWR to the strut COMPL front.
Set the coil spring correctly so that the spring end face (a) fits within the area (c) of the cutout portion (b) of rubber seat LWR as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.
Install the helper front to the piston rod.
Pull the piston rod fully upward, and install the dust cover front.
Temporarily assemble the mount strut front and the mount bearing front, install it to the piston rod, and temporarily tighten a new self-locking nut.
Using a hexagon wrench to prevent strut rod from turning, tighten the new self-locking nut with ST.
CAUTION: Make sure that the mount bearing front turns smoothly after tightening.

Preparation tool:

ST: STRUT MOUNT SOCKET (20399AG000)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

55 N.m (5.6 kgf-m, 40.6 ft-lb)
Loosen the coil spring compressor carefully.
