Front Strut: Disassembly

CAUTION:

When installing the coil spring compressor to the coil spring, follow the operation manual accompanied with the coil spring compressor during operation.
Do not use an impact wrench to compress the coil spring.

Using a coil spring compressor, compress the coil spring.
Using a hexagon wrench to prevent strut rod from turning, remove the self-locking nut with ST.
Preparation tool:

ST: STRUT MOUNT SOCKET (20399AG000)

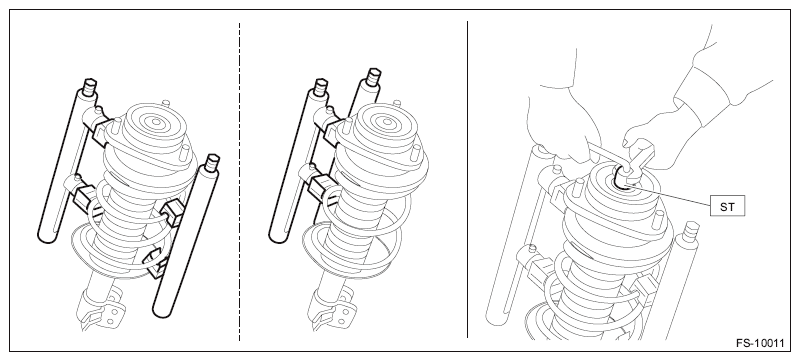

NOTE: < Example of coil spring compressor installation>
The installing position of coil spring compressor varies depending on the coil spring shape and winding number .

Courtesy of SUBARU OF AMERICA, INC.
Remove the mount strut front, the mount bearing front and the dust cover front from the strut COMPL front.
Gradually decrease the compression force of compressor, and remove the coil spring.
Remove the helper front.
