Front Suspension

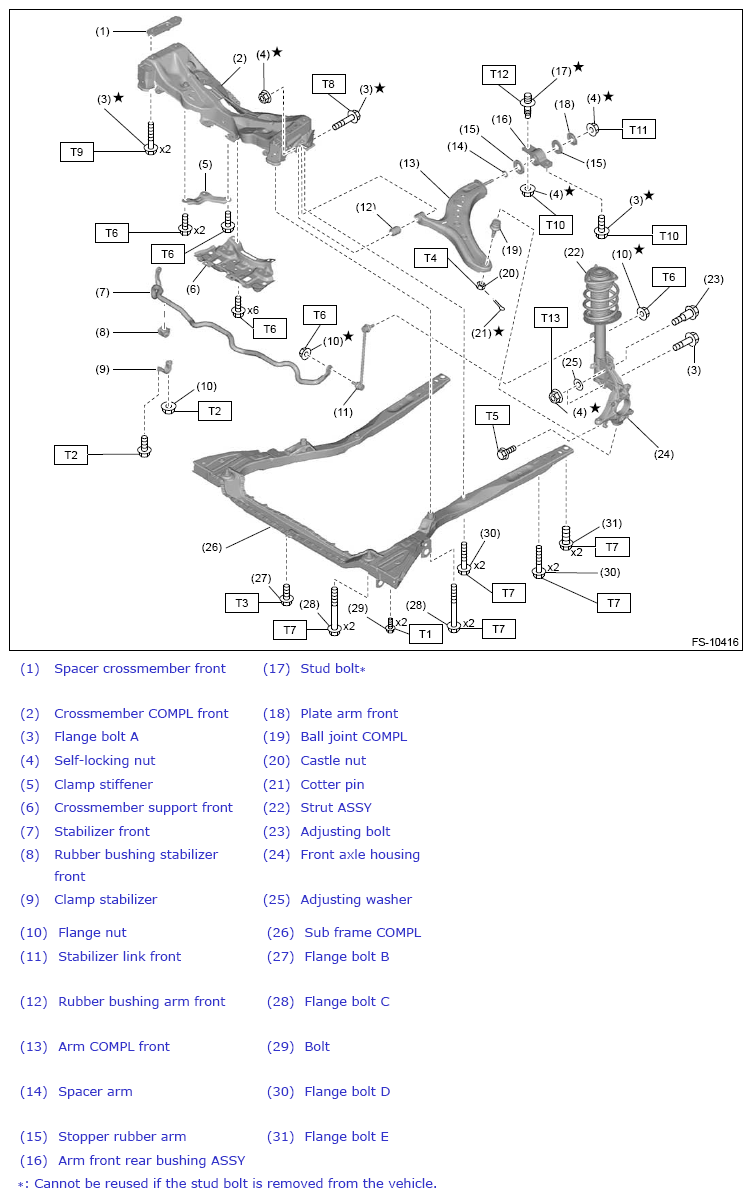

Fig 1: Exploded View Of Front Suspension Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 25 (2.5, 18.4)

T3: 32 (3.3, 23.6)

T4: 39 (4.0, 28.8)

T5: 50 (5.1, 36.9)

T6: 60 (6.1, 44.3)

T7: 90 (9.2, 66.4)

T8: 95 (9.7, 70.1)

T9: 110 (11.2, 81.1)

T10: 120 (12.2, 88.5)

T11: 140 (14.3, 103.3)

T12: 150 (15.3, 110.6)

T13: 155 (15.8, 114.3)

*: Cannot be reused if the stud bolt is removed from the vehicle.
