Sub Frame: Removal

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .

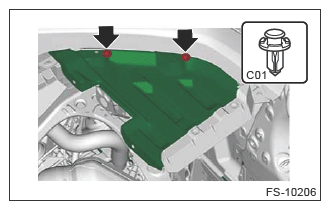

  3. Turn over the mud guard front.
    G13199337Courtesy of SUBARU OF AMERICA, INC.

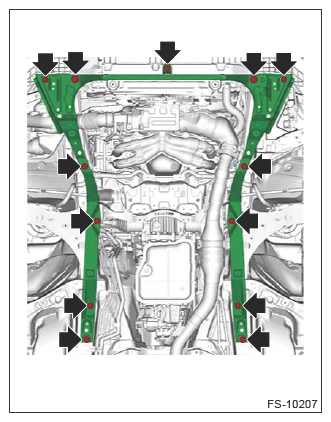

  4. Remove the sub frame COMPL from the vehicle body.
CAUTION: The sub frame COMPL is heavy. Remove it carefully by paying attention to the balance.
G13199338Courtesy of SUBARU OF AMERICA, INC.
