AWD Warning Light Display: Operation
AWD light illuminates or blinks, when the AWD is in special control condition and AWD has malfunction.

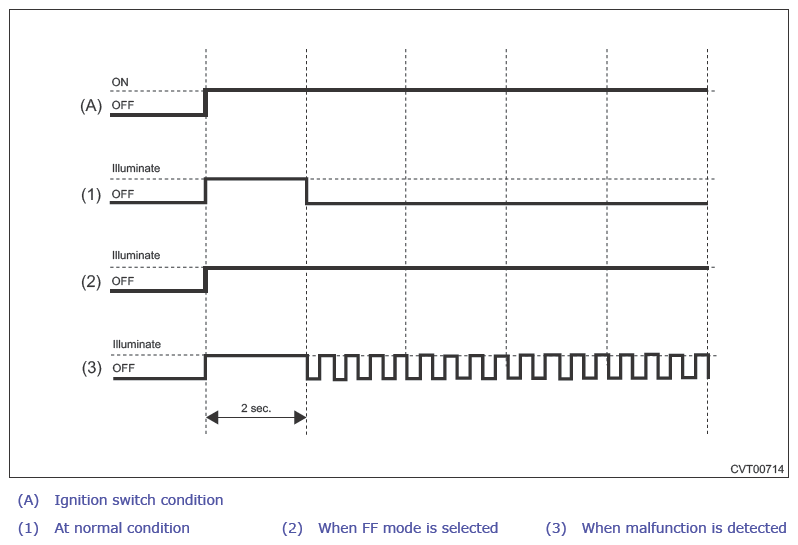

- At normal condition After turning the ignition switch to ON, illuminates for 2 seconds then goes off.
- When FF mode is selected AWD light illuminates when the AWD ON/OFF switching function is set to "FF mode" with the ignition switch ON.
- When malfunction is detected AWD light blinks at 2 Hz when any of the following malfunctions are detected with the ignition switch ON.
- When tire with different diameter is installed, or air pressure of any of four wheels is excessively low.
- When "Rear differential inspection mode" is judged as NG. Ref. to DIFFERENTIALS>REAR DIFFERENTIAL INSPECTION MODE .
If the AWD light does not illuminate, or illumination patterns are not as above, check the AWD light circuit. Ref. to TRANSMISSION (DIAGNOSTICS)>AWD Warning Light Display>INSPECTION .
