CVTF Cooler (With Warmer Function): Removal

CAUTION: If CVTF and engine coolant spills over the engine, completely wipe it off to avoid emission of smoke and causing a fire.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT .
  3. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .
  4. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .

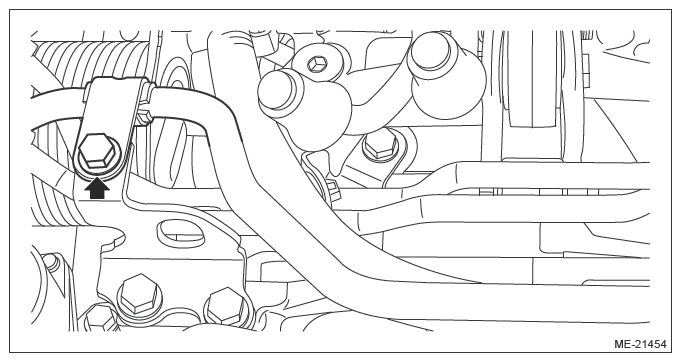

  5. Disconnect the vacuum pipe.
    G13198719Courtesy of SUBARU OF AMERICA, INC.

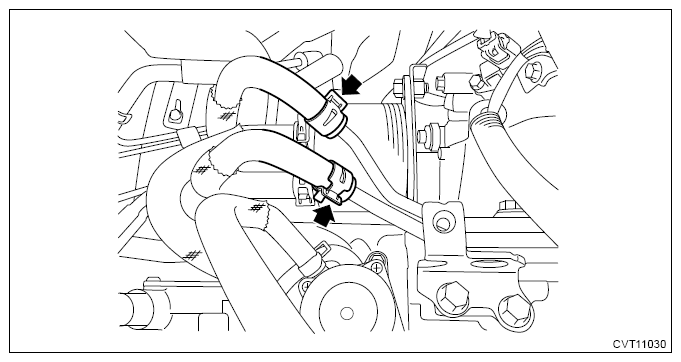

  6. Disconnect the CVTF cooler inlet hose and CVTF cooler outlet hose.
    G13200071Courtesy of SUBARU OF AMERICA, INC.

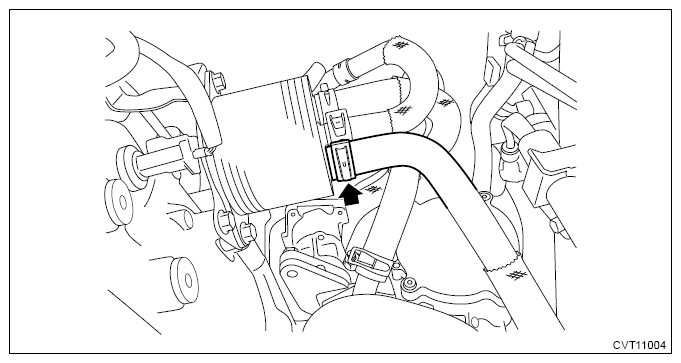

  7. Disconnect the water hose (inlet).
    G13200072Courtesy of SUBARU OF AMERICA, INC.

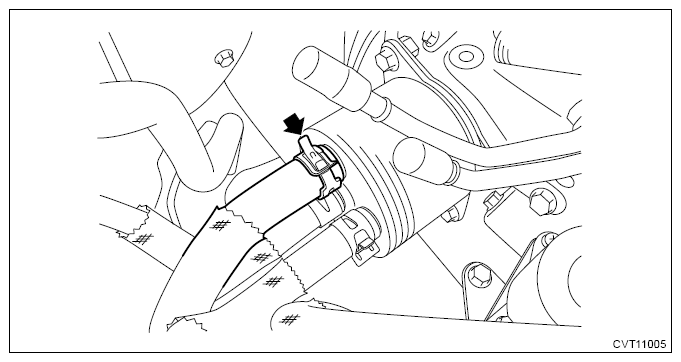

  8. Disconnect the water hose (outlet).
    G13200073Courtesy of SUBARU OF AMERICA, INC.

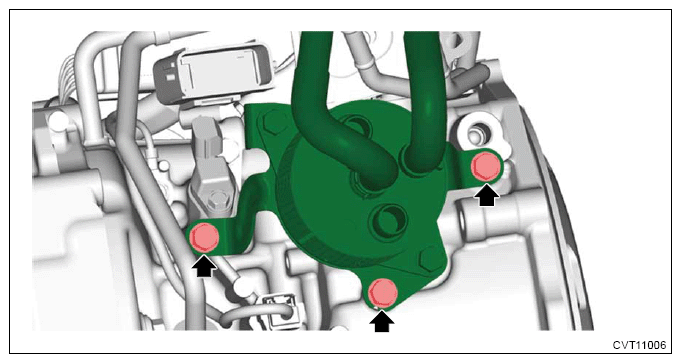

  9. Remove the CVTF cooler (with warmer feature).
    G13200074Courtesy of SUBARU OF AMERICA, INC.

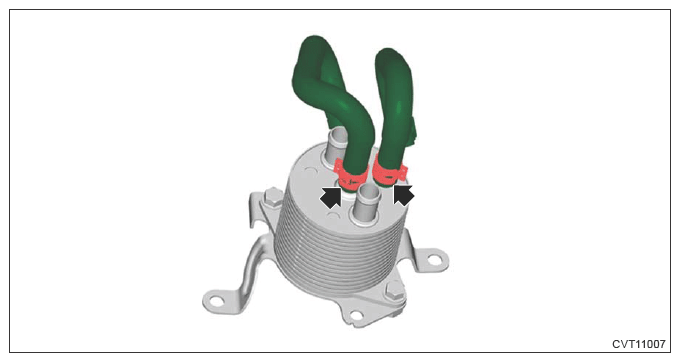

  10. Remove the CVTF cooler inlet hose and CVTF cooler outlet hose.
    G13200075Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the water hose (outlet).
    NOTE: Remove if necessary.
    1. Remove the fuel pipe insulator No. 1. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>REMOVAL .

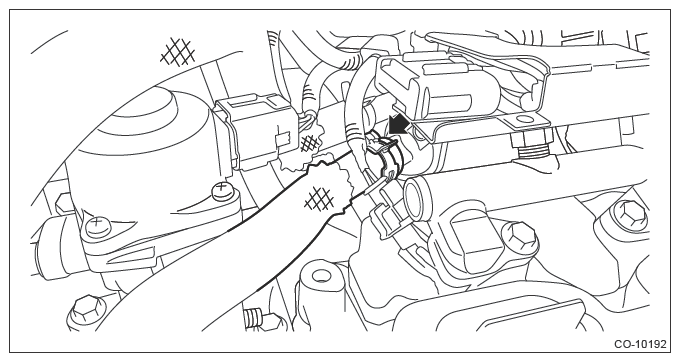

    2. Remove the water hose (outlet).
    G13199103Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the water hose (inlet).
    NOTE: Remove if necessary.
    1. Remove the front exhaust pipe. Ref. to EXHAUST (H4DOTC)>Front Exhaust Pipe>REMOVAL .

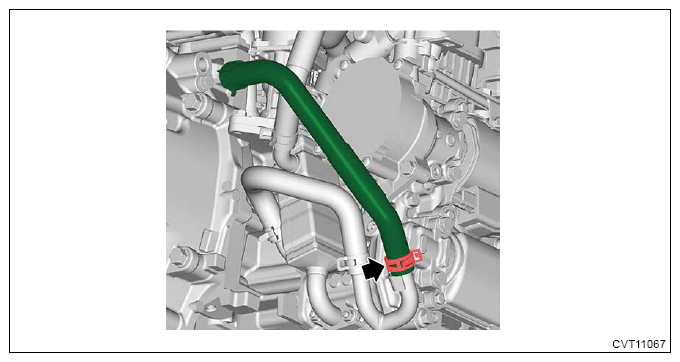

    2. Remove the water hose (inlet).
    G13200077Courtesy of SUBARU OF AMERICA, INC.
